  • KUS Pulse Signal Speedometer
  • KUS Pulse Signal Speedometer

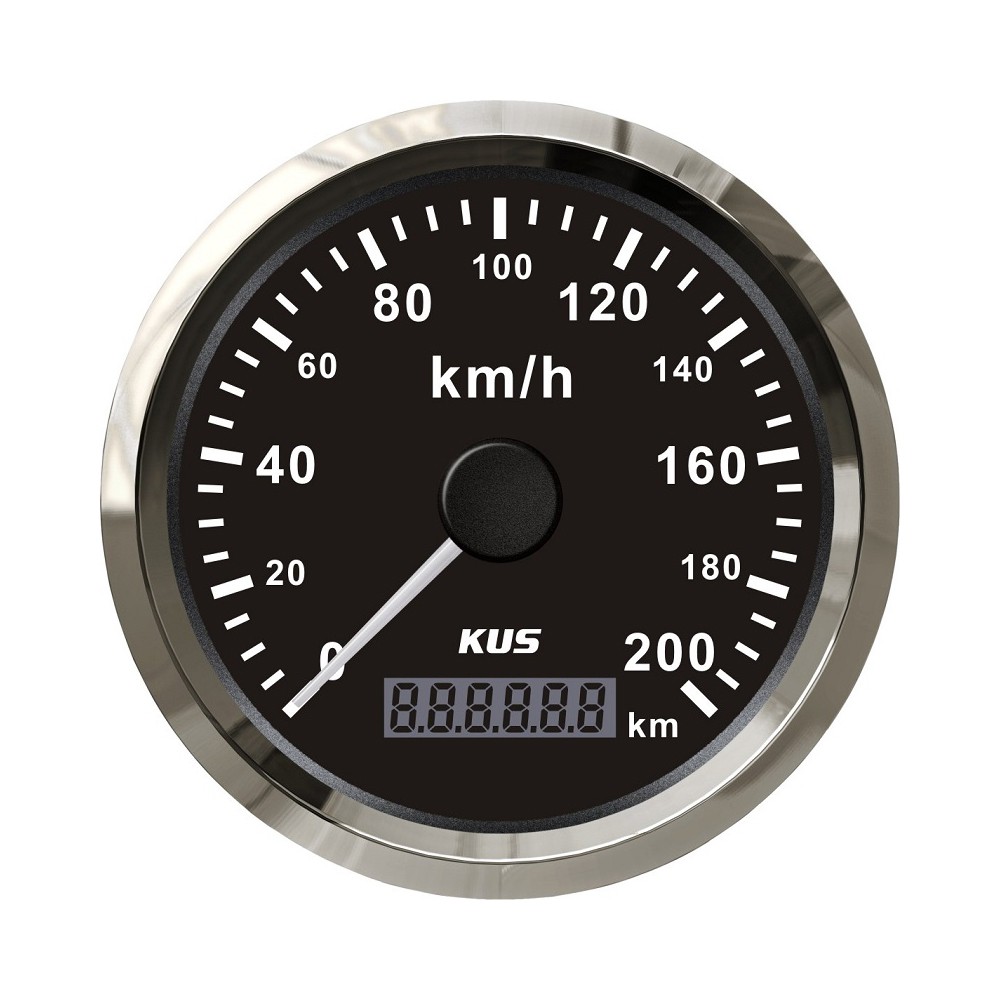

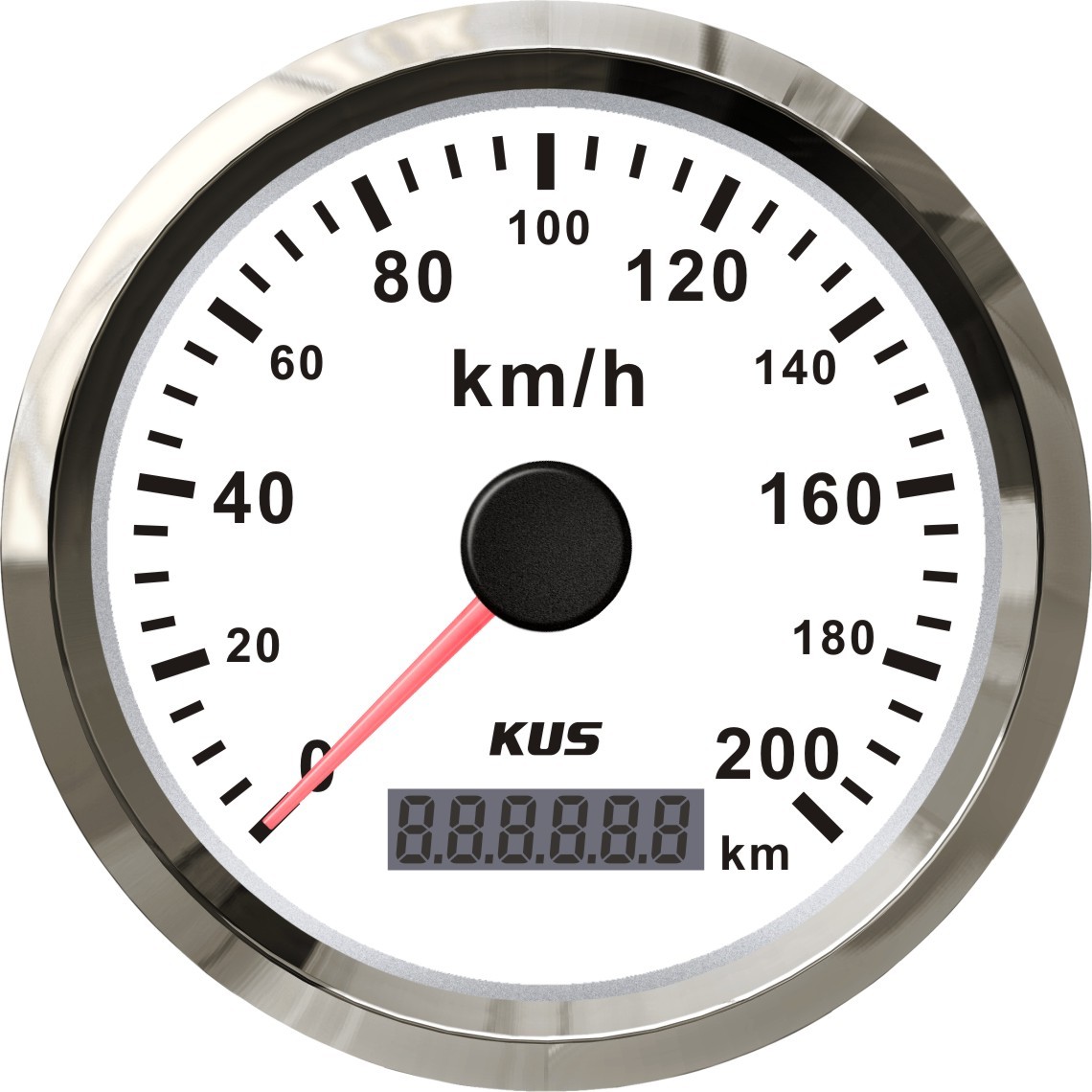

KUS Pulse Signal Speedometer KUS Pulse Signal Speedometer

KUS Pulse Signal Speedometer

  • Product Item:KUS Pulse Signal Speedometer
  • Fixing dimension: 85mm(3-3/8")
  • Indicating Range: 0-200km/h
  • Working Voaltage: 12V/24V
  • Choice between red and yellow backlight
  • pulse speedometer  , odometer  , speedometer
    Inquiry Send Email PDF

    Description

    Key Features:


    -The world's newest pulse Speedometer.


    -The speedometer precisely shows the actual speed and total mileage.


    -Pulse signal


    -The gauge has the advantages of high precision and short start up time.


    -Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles.


    Application:


    85mm pulse speedometer, kus speedometer for trucks, tractors, and construction machinery.


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")


    -Indicating Range: 0-200km/h


    -Working Voaltage: 12V/24V


    -Choice between red and yellow backlight


    -Operation mode: LCD display, stepper motor


    -Protection grade is IP67, the whole body is completely waterproof;


    -Excellent anti-fogging function;


    -316 Stainless steel bezel with curved glass;


    -Convenient Installation by multi-plug socket connecting way;


    Package Includes:


    1x Pulse speedometer


    1x Multi-plug socket

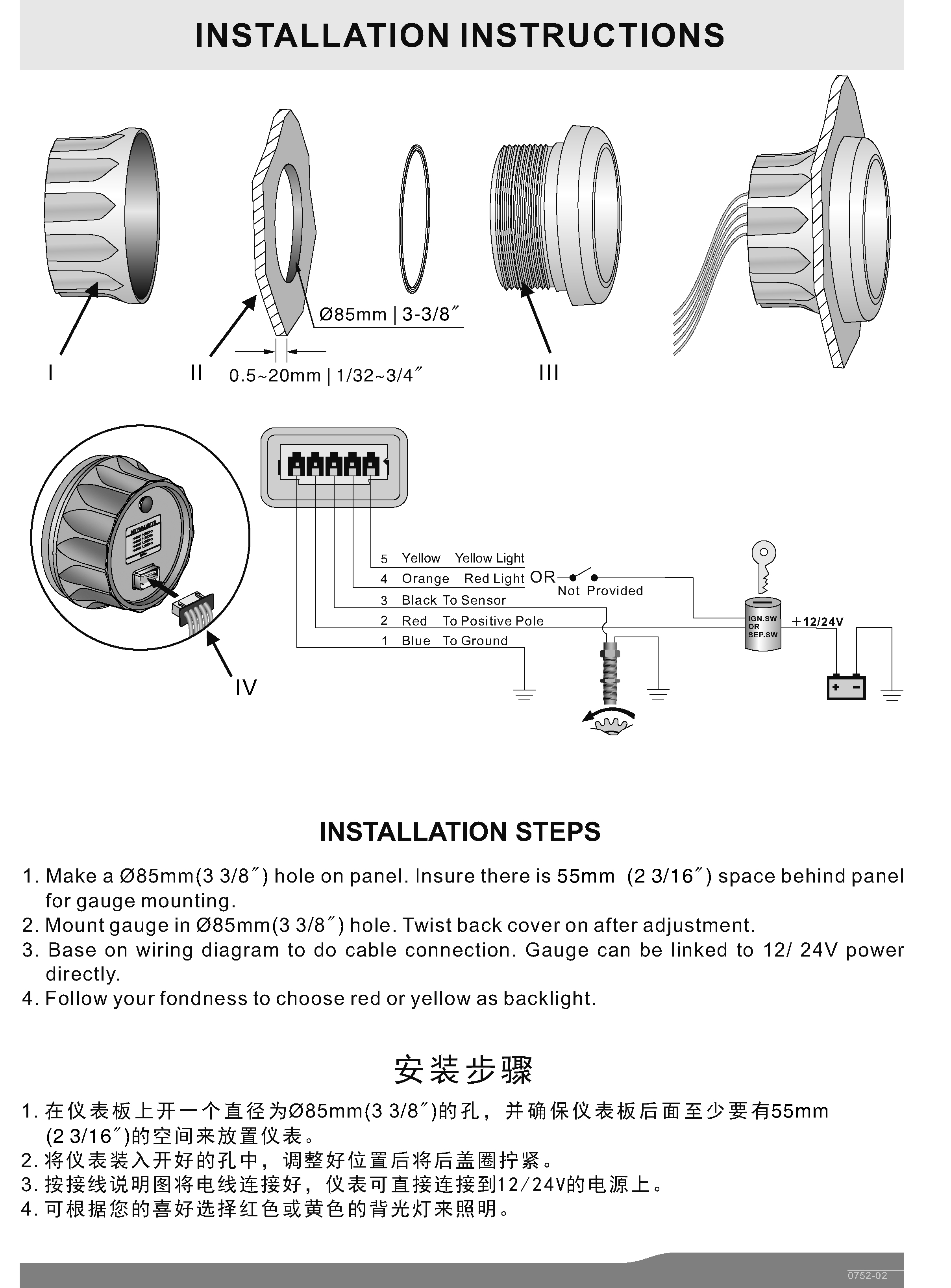

    1x Installation Instruction
