Description
KMG-30T is a multi-functional digital instrument that displays functions including oil level, tachometer, speedometer, oil and water level temperature in one device.
KMG-30T is a NMEA2000 and J1939 compatible multi-functional digital instrument.

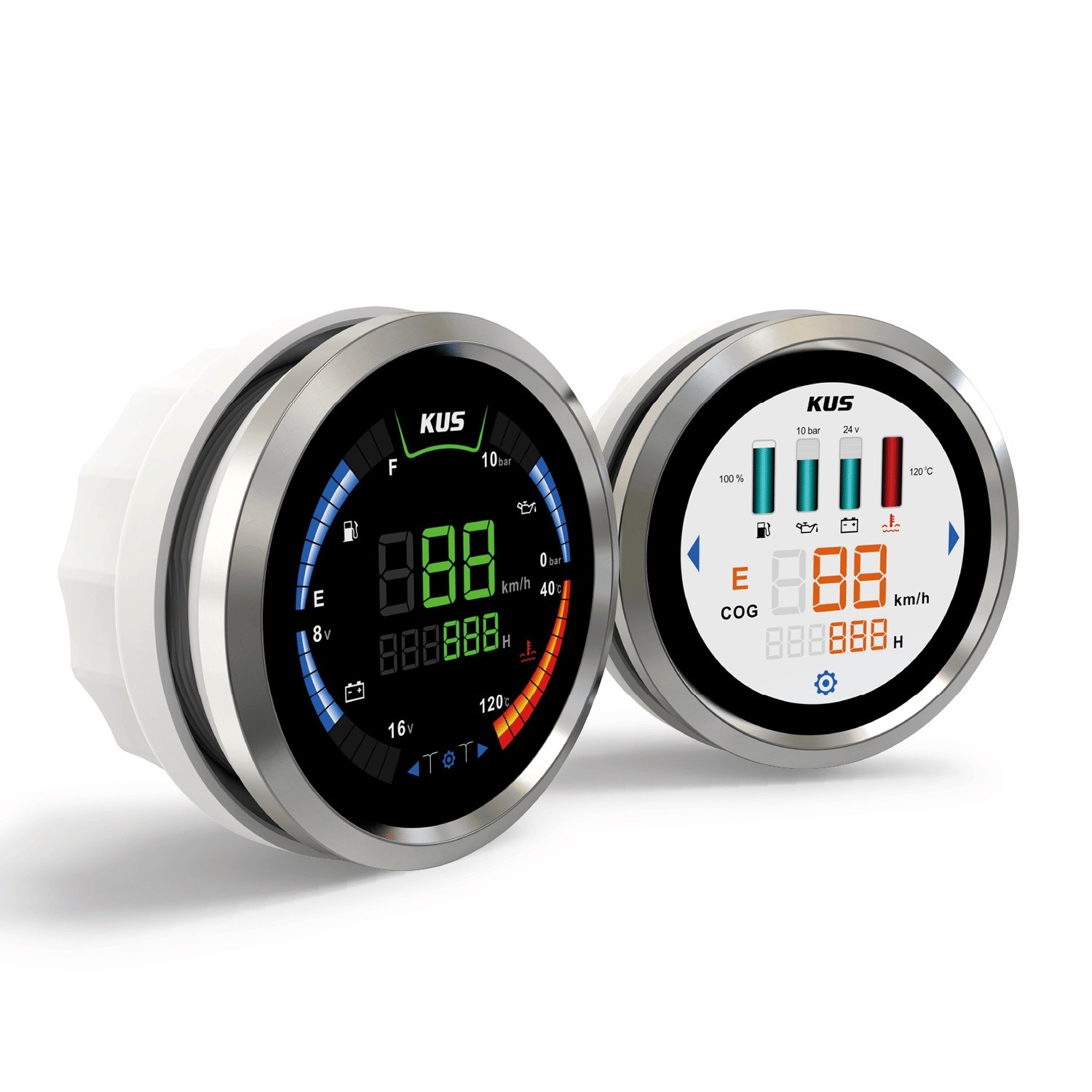

It comes in a stainless-steel cover with a black dial and touch screen. The connection, data and instances can be set to CAN Bus or analog signal output.
The Unit is compatible with J1939, NMEA 2000 network and analog signal.
Product Features:

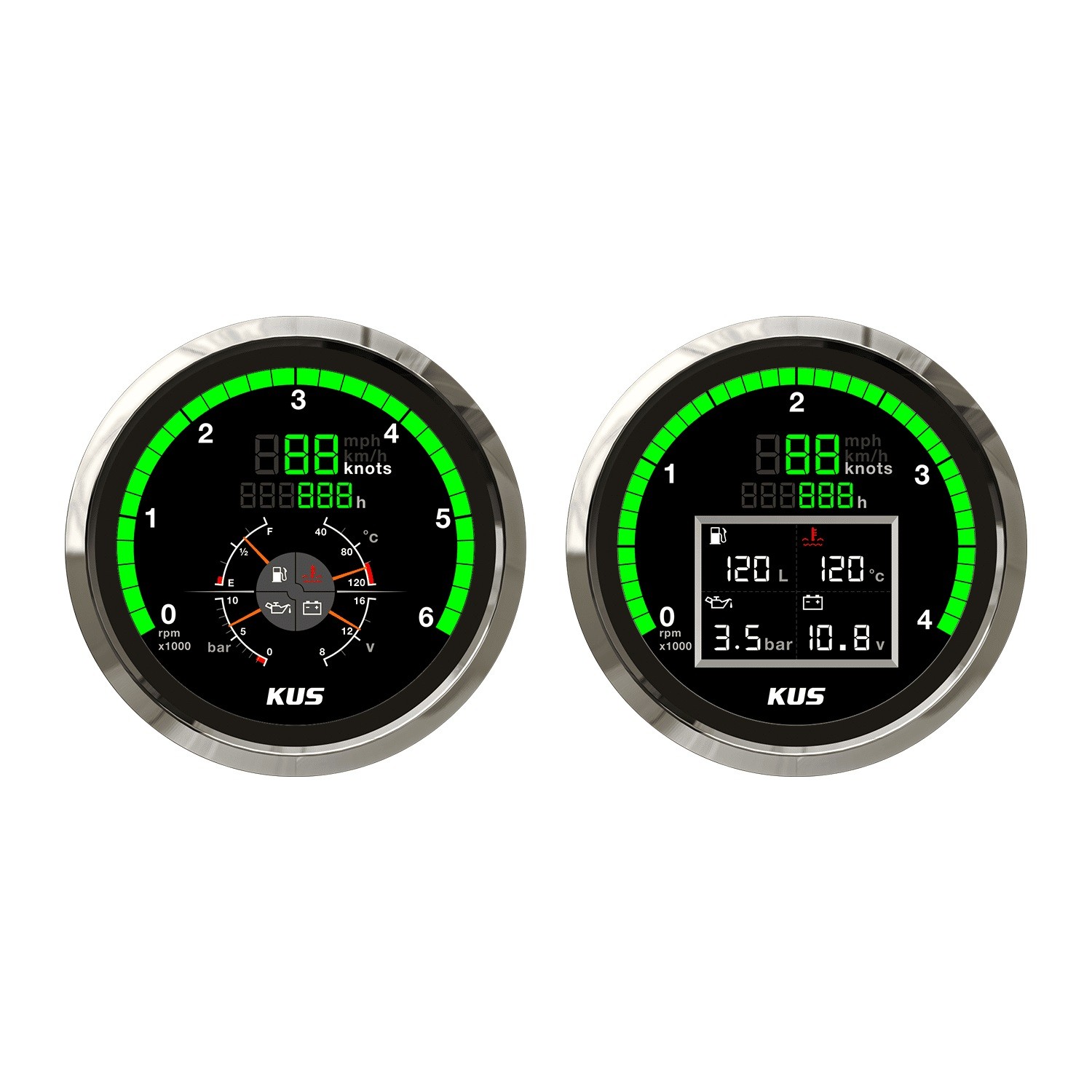

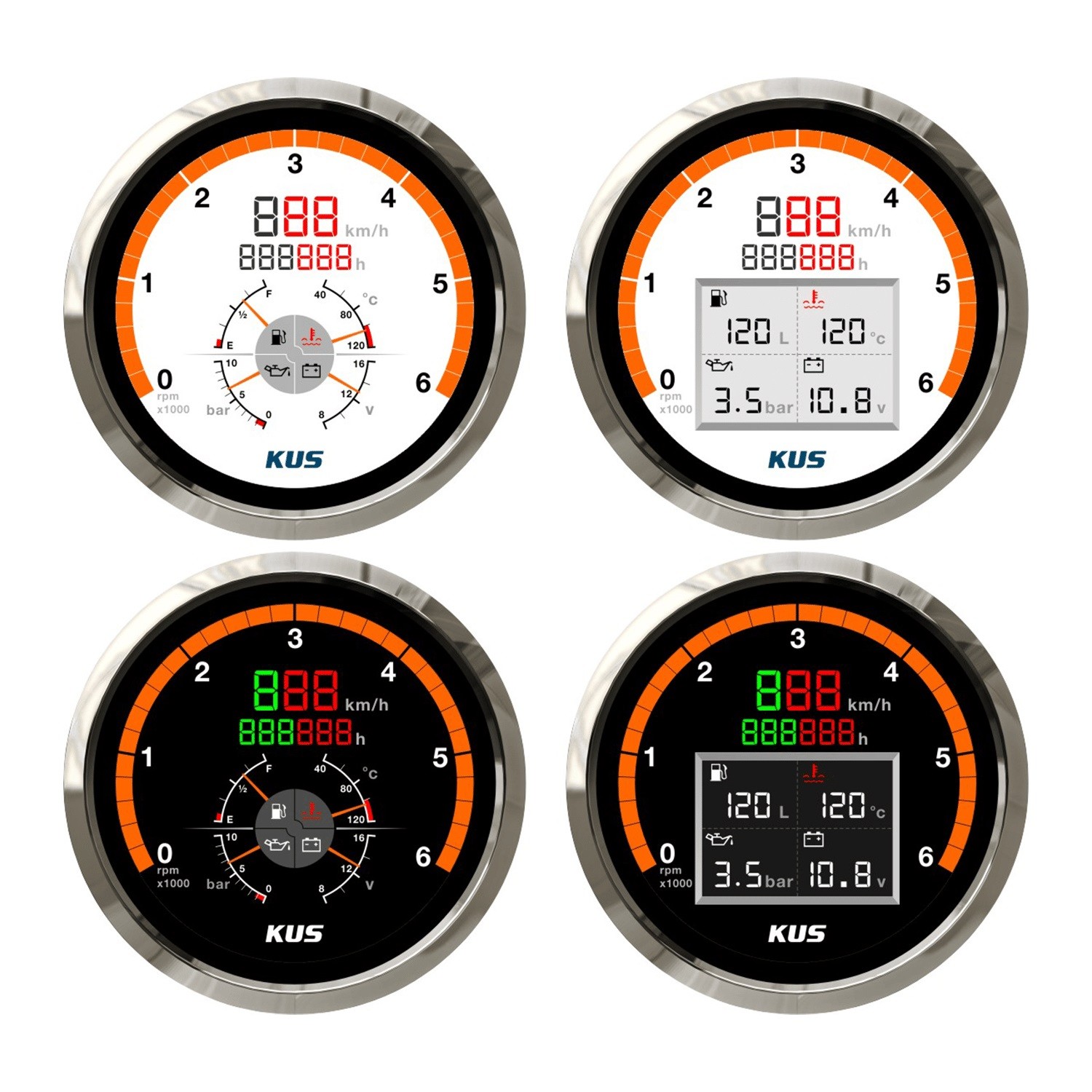

Two display options:
Model 1: Speed, COG, Voltage, Fuel Level, Engine Temperature, Oil Pressure, Engine Hours
Model 2: RPM, Voltage, Fuel Level, Engine Temperature, Oil Pressure, Engine Hours
Compatible with NMEA 2000 and supports 4 different analog signal inputs (Tachometer Sensor, Fuel, Water Temperature and Oil Pressure Sensor)
For NMEA 2000, the instance number needs to be set up on the KMG
For analog signal, optional scope can be set up by customer
Product Specifications:
Display Dimensions: Ø 76 mm / Ø 3 inches
Mounting Dimensions: Ø 98 mm / Ø 3.8 inches
Working Voltage: 8-12 VDC
Working Current: ≤170mA (12V)
Resolution: 432 x 432 pixels
Operation Method: Touch Screen
Working Temperature: -30°C to +85°C / -22°F to +185°F
Storage Temperature: -30°C to +85°C / -22°F to +185°F
Product Data:
Speed display:0-999km/h;knots;mph
Tachomter:0-999999RPM,Speed ratio:0.5-250
Hourmeter:0-999999 H
COG:E N S W
Fuel level:E-F or 0-100%,Signal:0-190ohm/240-33ohm or customized
Water Temperature:40-120℃/100-250℉,Signal:301-23ohm or customized
Oil Pressure:0-10Bar/0-145Psi,Signal:10-185ohm or customized
Voltmeter:8-12V
Alarm Functions: Fuel (10%), Water Temperature (95°C/203°F), Oil Pressure (0.7 Bar/10 psi), customizable
10% – 100% backlight brightness
IP67 protection rating
Package includes:
KMG-30T
GPS Antenna
1M 5-core CAN cable
1M 6 cores analog cable
Instruction manual
