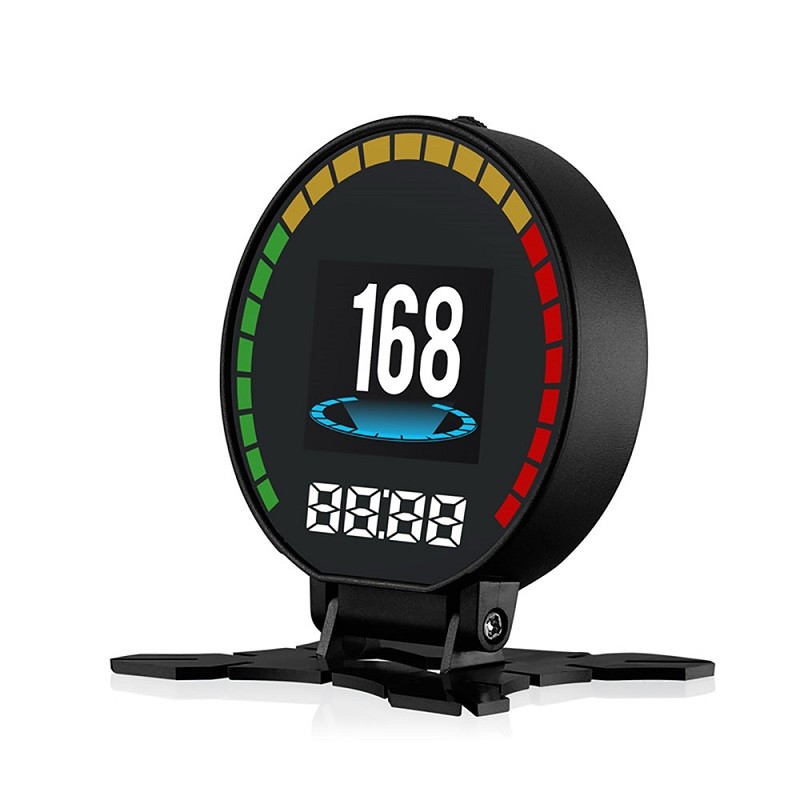

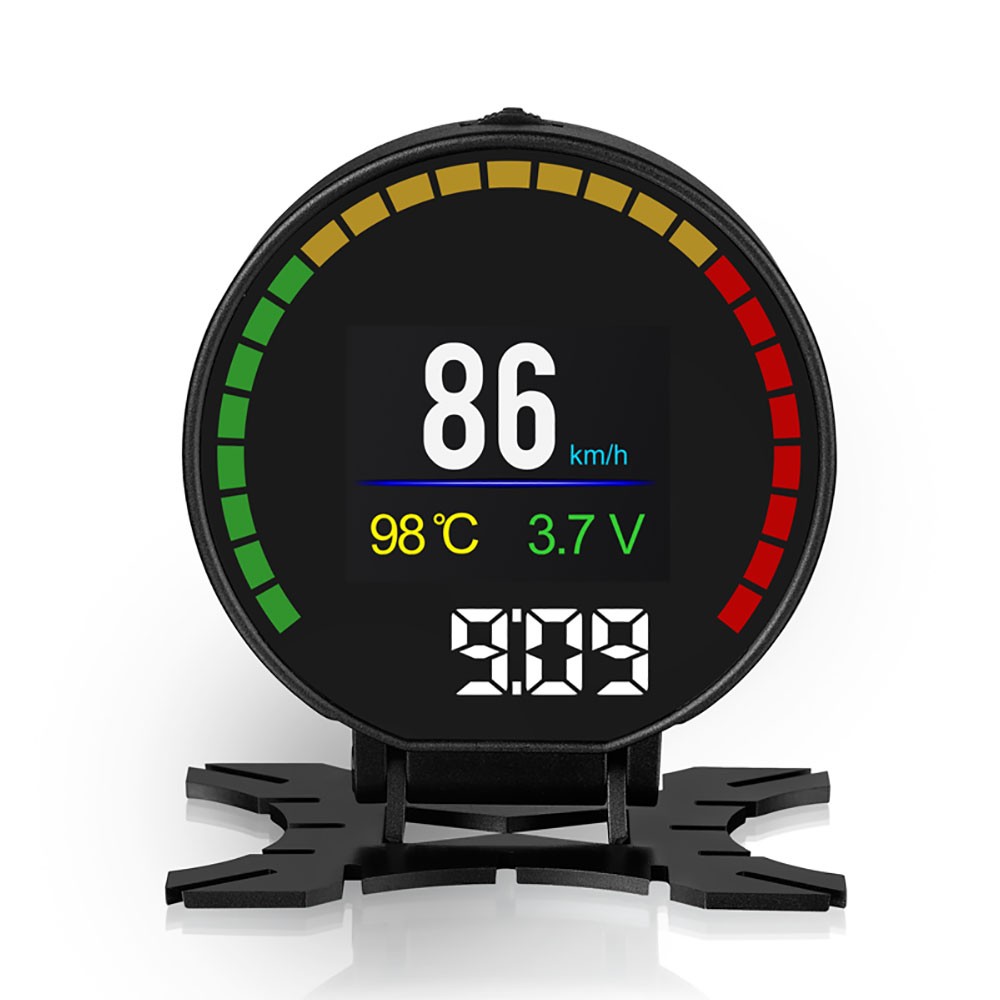

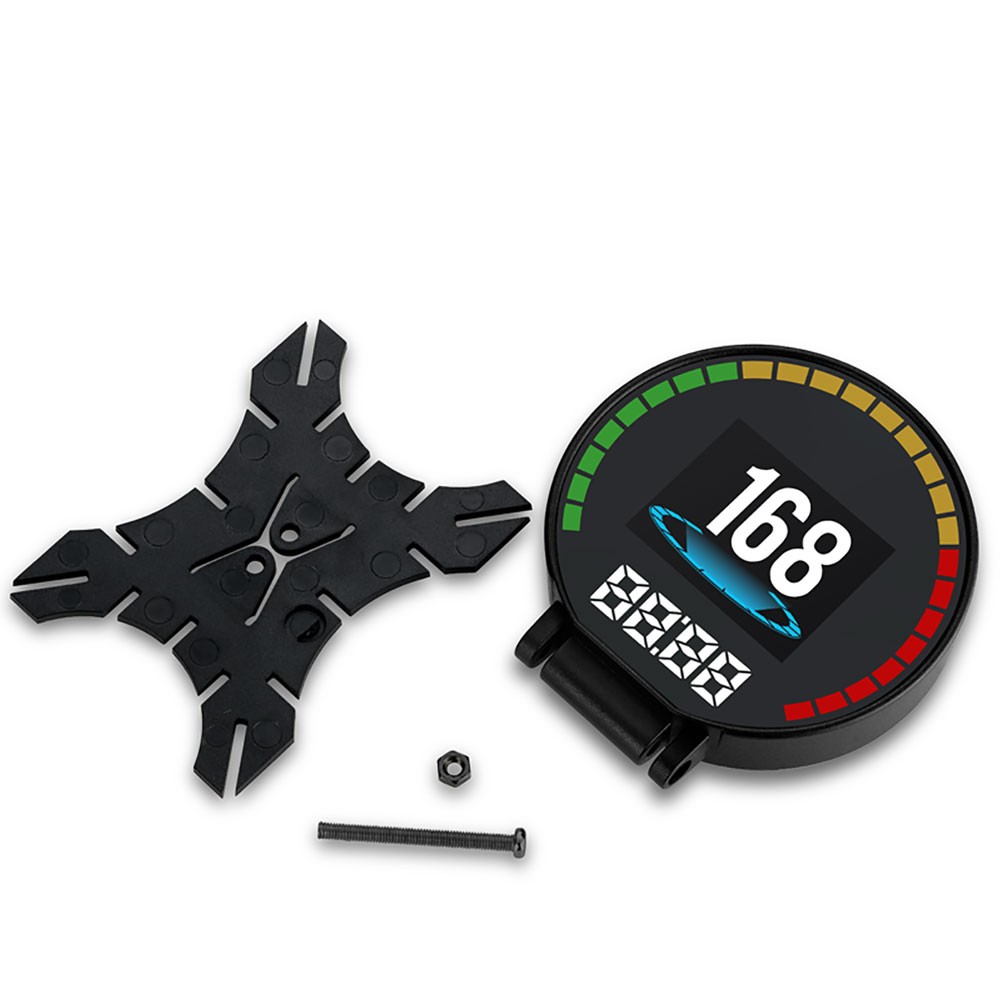

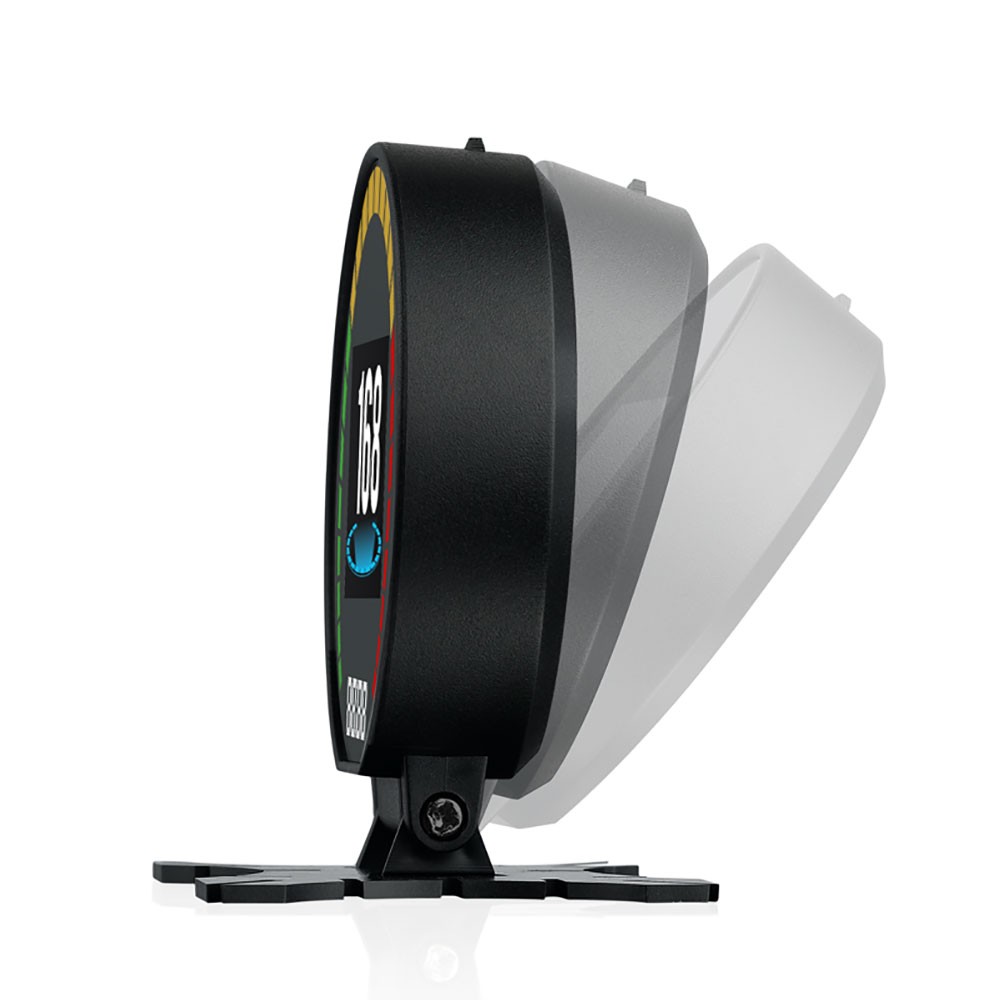

  • ELING OBD2 HUD Speedometer P15
  • ELING OBD2 HUD Speedometer P15
  • ELING OBD2 HUD Speedometer P15
  • ELING OBD2 HUD Speedometer P15
ELING OBD2 HUD Speedometer P15 ELING OBD2 HUD Speedometer P15 ELING OBD2 HUD Speedometer P15 ELING OBD2 HUD Speedometer P15

ELING OBD2 HUD Speedometer P15

  • Product Item:HUD P15
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email PDF

    Description

    Main Functions&Features:

    1. Available for cars with OBD2 and EUOBD port(Car automatic diagnosis system), plug and play.

    2. TFT LCD multi color smart display.

    3. The first scan will show the vehicle protocol.

    4. Multi function display mode or simple function display mode can be switched freely.

    5. Add new functions: accelerating competitive mode, Brake performance test, can read the entire car data stream information.

    6. Rich contents: vehicle speed, engine RPM, water temperature, voltage, instantaneous fuel consumption, average fuel consumption, single driving distance, total driving distance, driving time,turbo pressure, Air/Fuel Ratio, oil temperature, low voltage alarm, high water temperature alarm, over speed alarm, engine fault code alarm, eliminate the fault code, freely switch between kilometers&miles.

    Technical Parameters:

    Environment temperature: -40c- + 80c

    atmospheric pressure: 86-106KPa

    Relative Humidity: 10% -95%

    environmental noise :≤ 60dB (A)

    Alarm sound level: ≥30dB (A)

    Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)

    Product size: Diameter 73 mm x thickness 23 mm

    Product Weight: 58 g
