  • ELING GPS OBD2 Speedometer M9
  • ELING GPS OBD2 Speedometer M9
  • ELING GPS OBD2 Speedometer M9
  • ELING GPS OBD2 Speedometer M9
ELING GPS OBD2 Speedometer M9 ELING GPS OBD2 Speedometer M9 ELING GPS OBD2 Speedometer M9 ELING GPS OBD2 Speedometer M9

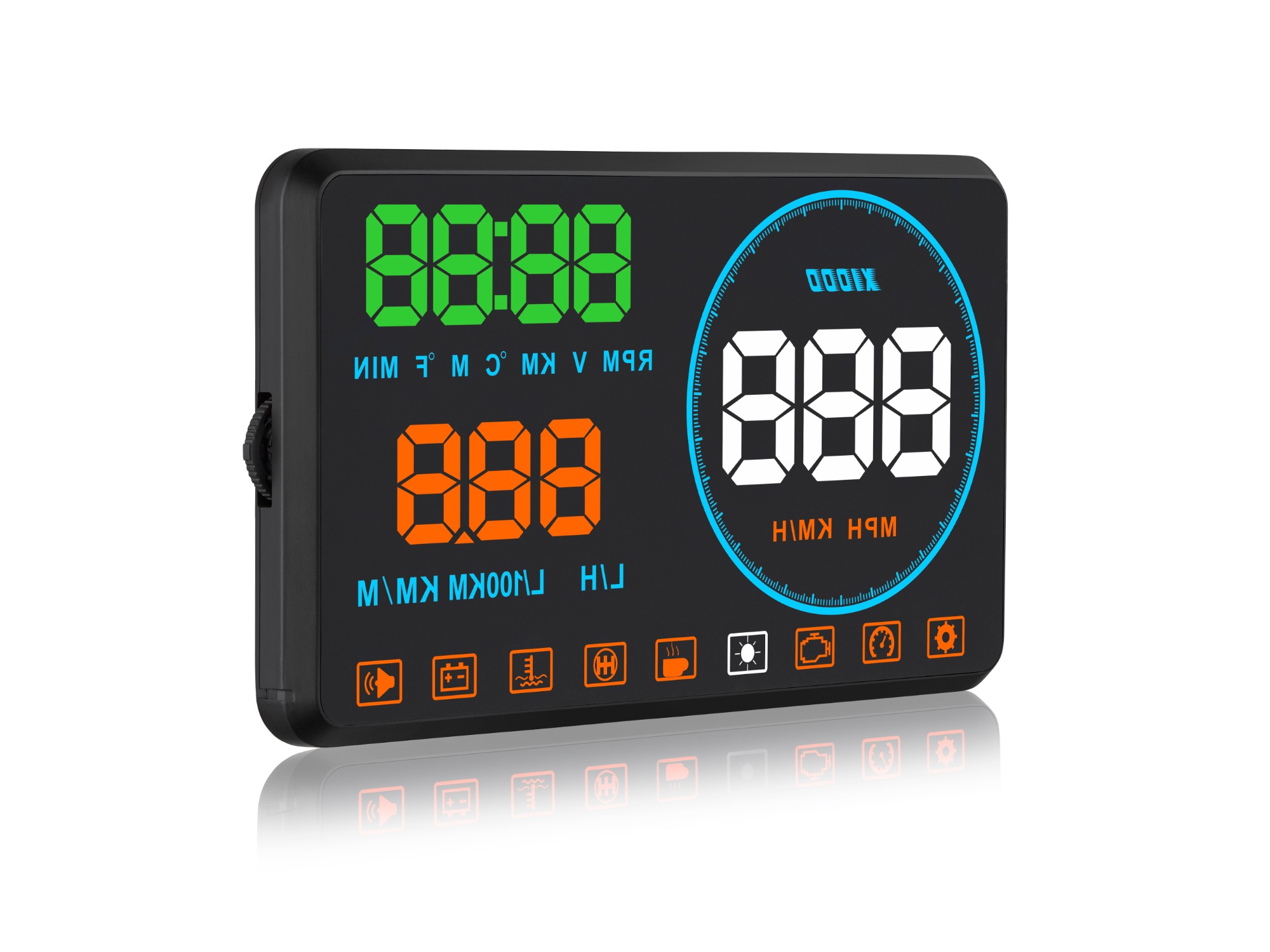

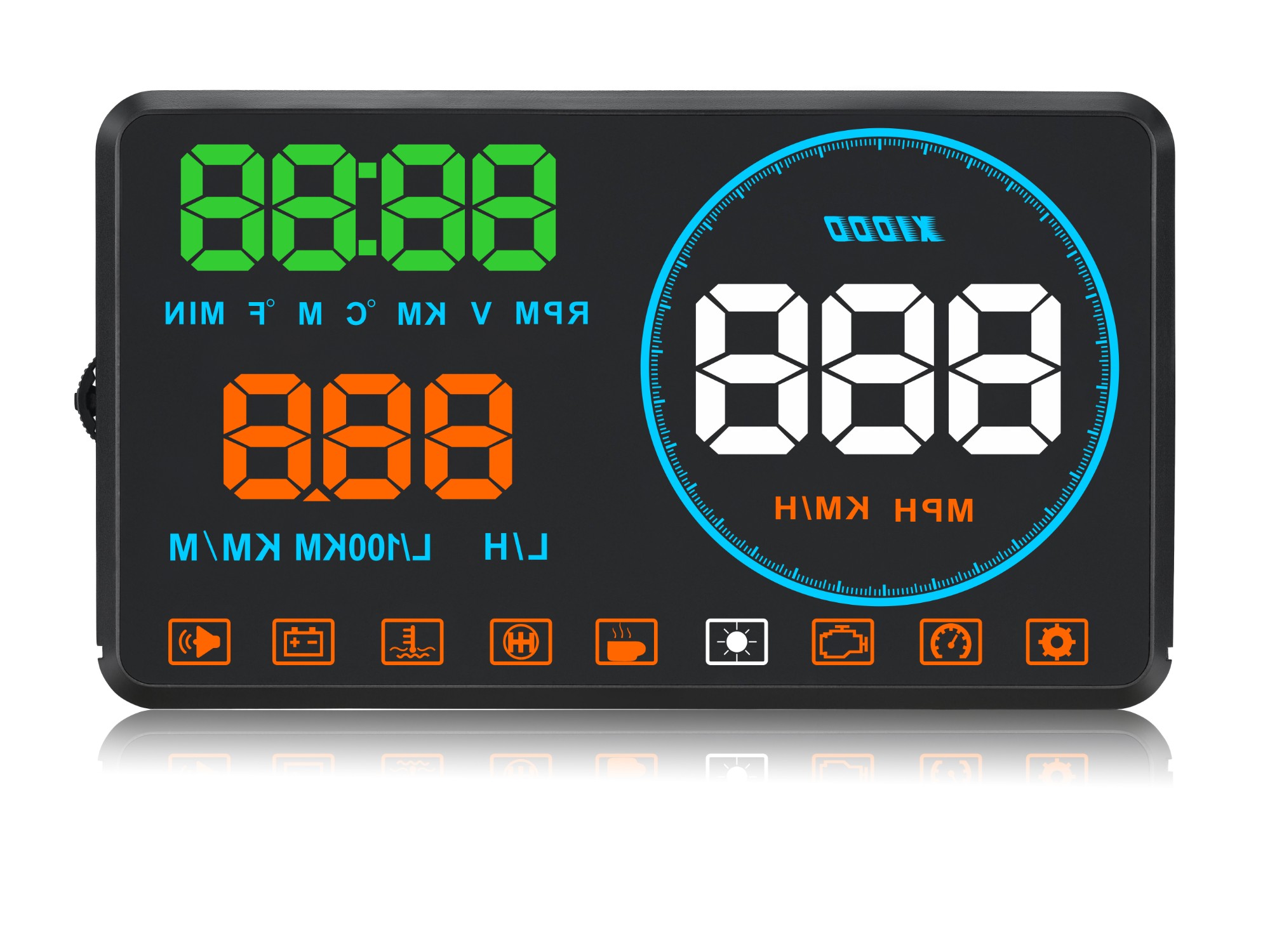

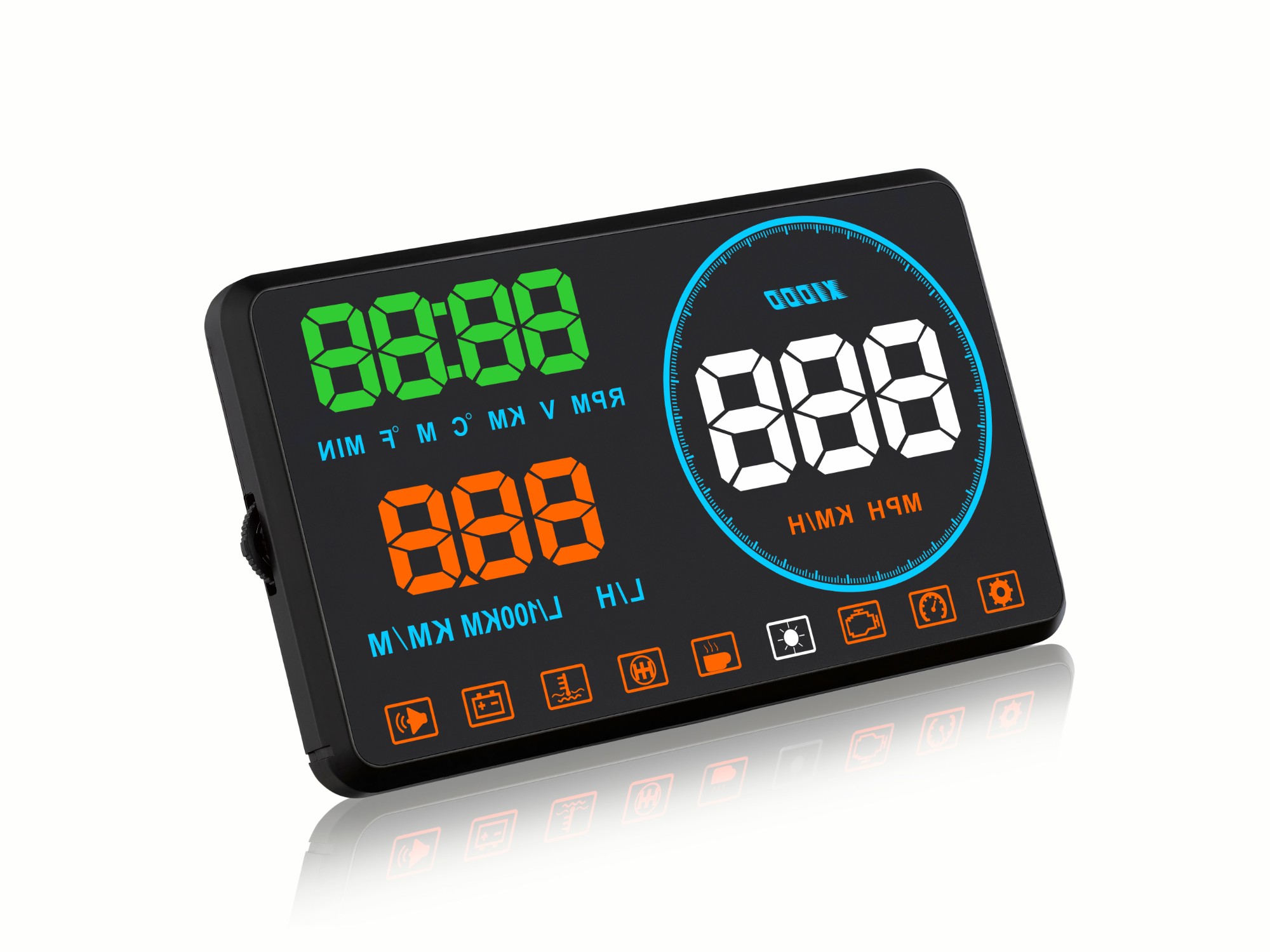

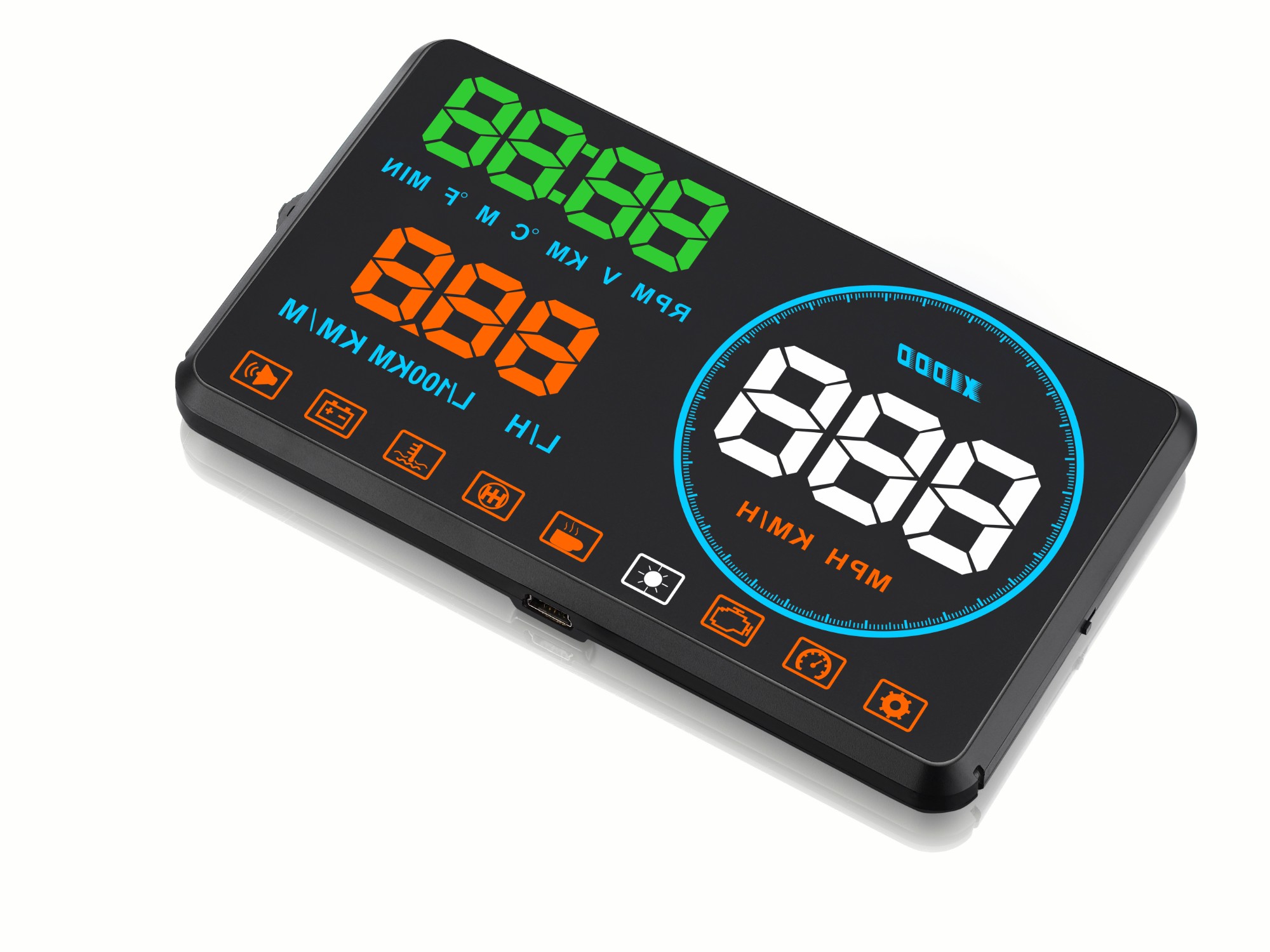

ELING GPS OBD2 Speedometer M9

  • Product Item:HUD M9
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email

    Description

    Main Features:

    1. Available for cars with OBD2 and EUOBD port(Car automatic diagnosis system), plug and play.
    2. 5.5 inch screen HD display.
    3. Multi-color design makes the screen more abundant and easier to read.
    4. Nano-technology to eliminate double reflections, more clear.
    5. New function: driving distance measurement.
    6. Rich contents: Speed, rpm, water temperature, voltage, instantaneous fuel consumption, average fuel consumption, driving distance measurement, voltage, shift reminders, fatigue driving reminders, low voltage alarm, high water temperature alarm, over speed alarm, engine failure alarm, eliminate the fault code. Freely switch between kilometers & miles.
    7. Auto power on/off: HUD start and off with vehicle started and shutdown, effective protection of the car battery; retaining the manual switch mode, more easy to control HUD.
    8. Automatic and manual brightness adjustment mode, driving without glare.

    Reflective film installation:
    Using the unit without the reflective film may result in a double image observed by the user depending on the windshield. If you see a double layer it is due to the windshields dual layer construction and you should install the film by following the instructions below:
    1. Place the supplied non-slip mat in the desired position on the dashboard with the HUD on top.
    2. Observing where the HUD reflects place the reflective film in position.
    a. Ensure the surface is clean and dry before installing the film;
    b. Remove the back protective side marked (1) and attach the film to the clean windscreen;
    c. Once you’re satisfied with the location use a credit card or similar to remove any bubbles or air pockets that remain;
    d. Remove the front side marked (2), pls adjust the place of nonslip mat to make information can be fully display.
