Description
Specifications:

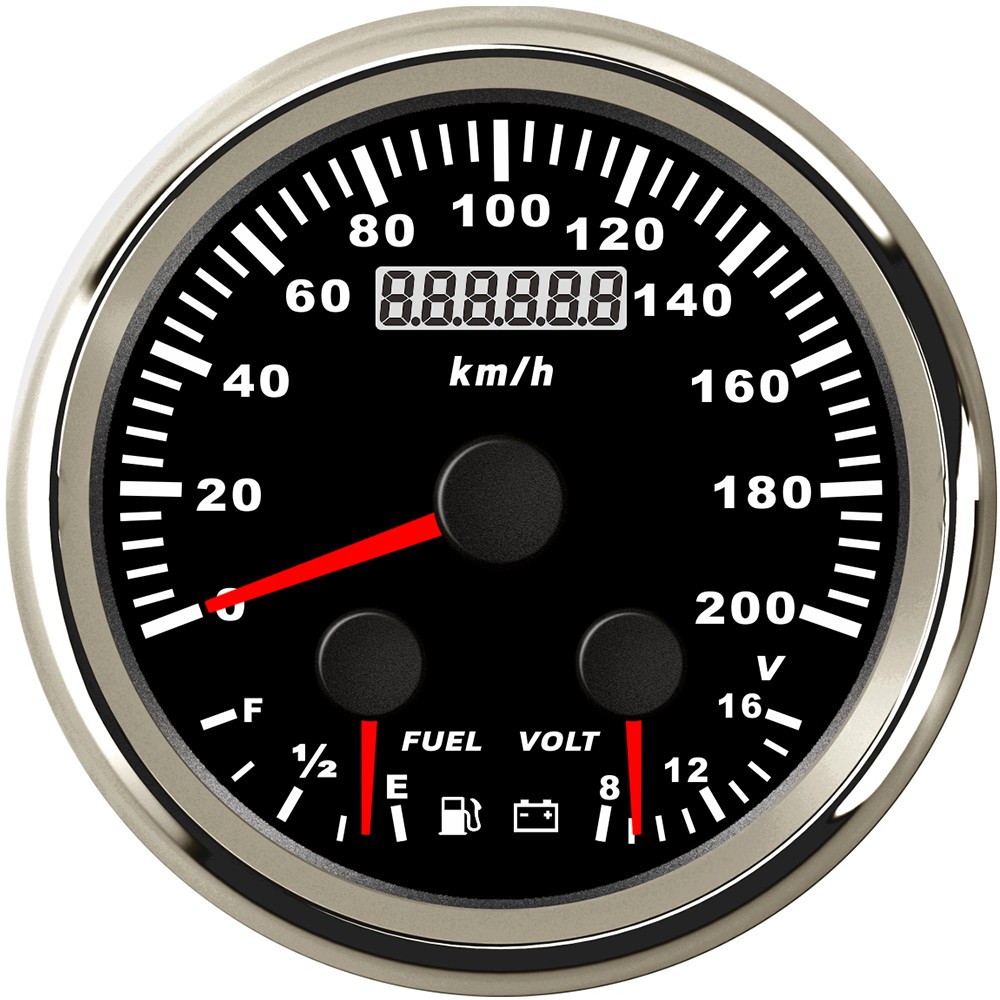

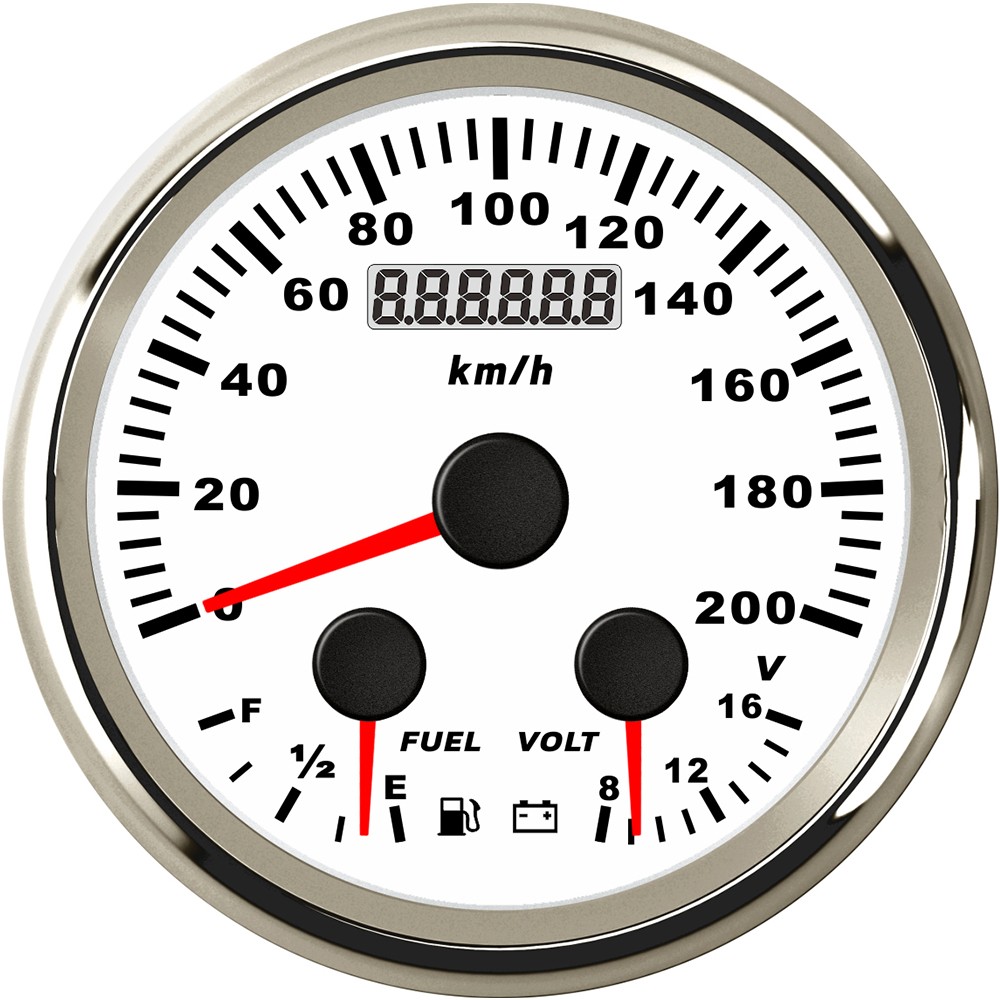

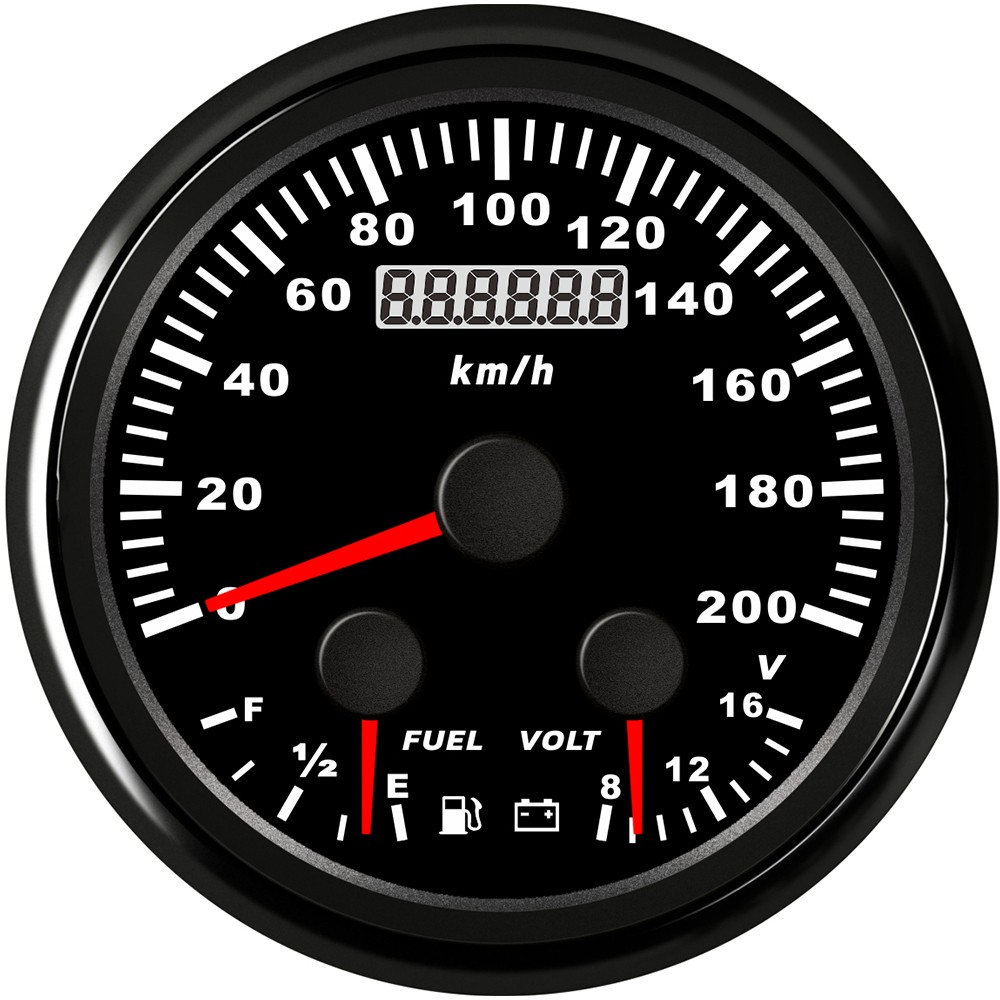

Name: 3 in 1 Multi-function gauge
Operating Voltage: 12V
Indicating range:
GPS speedometer: 0-200KM/H
Odometer:0-999999km
Fuel level: E-1/2-F
Voltmeter: 8-16V
Input signal:
GPS speedometer: GPS signal, with GPS antenna
Fuel level: 0-190ohm,240-33ohm
Protection Class: IP67, can work underwater 1meter position
Sensors need to be purchased separately
Features:
Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability and stability, drive and control is relatively simple and so on.
Using a stepper motor drive pointer, accurate display of the driving speed, fuel level, voltage.

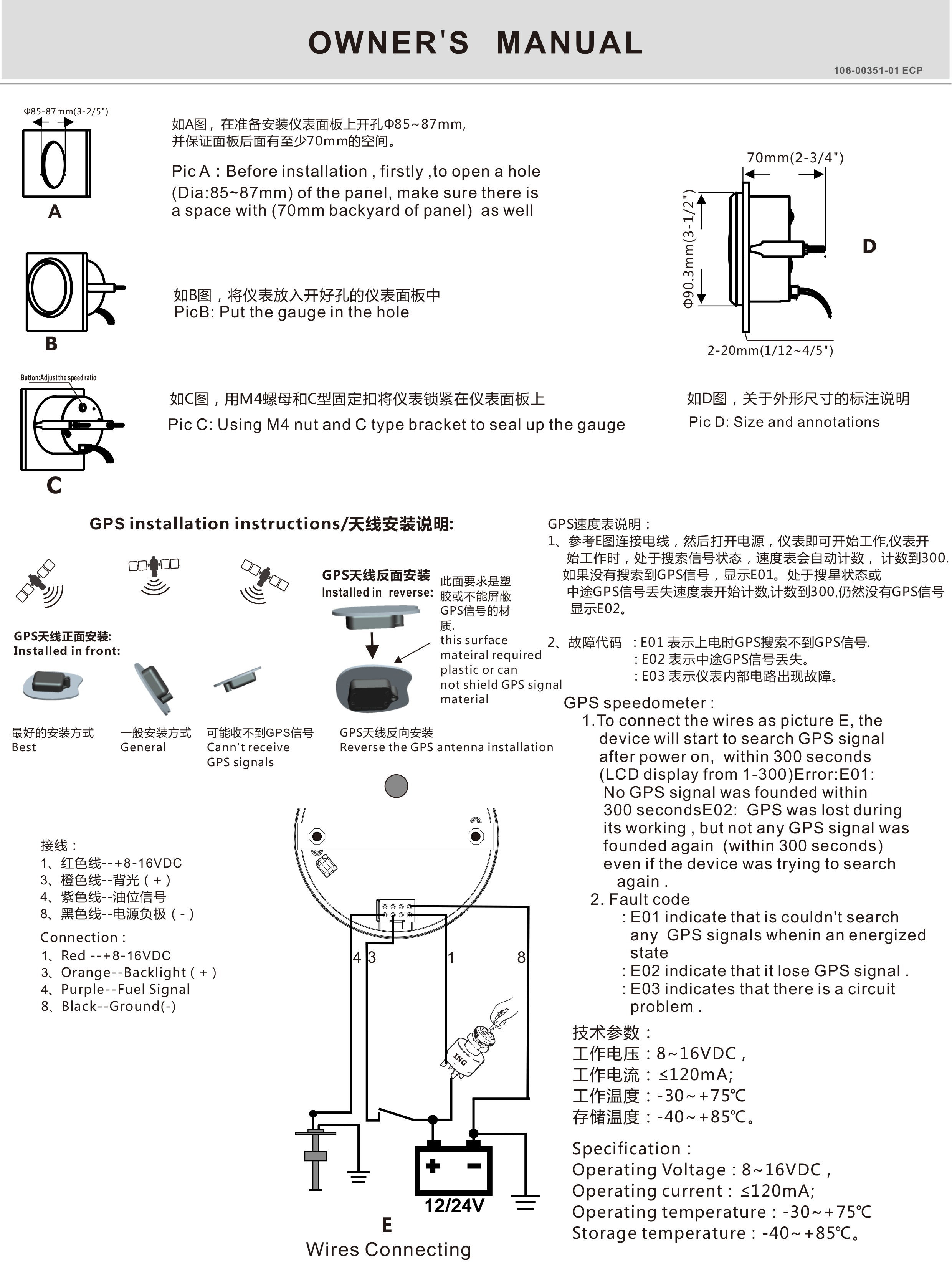

Instructions:
Before installation, firstly, to open a hole (Diameter: 85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well, put the gauge in the hole.
Using M4 nut and C type bracket to seal up the gauge.
Notes: Due to the manual measurement, there might be some error.
Connection:
Red--Battery(+8-16VDC)
Orange--Backlight(+)
Purple--Fuel signal
Black--Ground(-)
Package Includes:
1 x 3 in 1 Multi-function Gauge
1 x GPS Antenna
1 x Cable
