  • ELING ECH Digital GPS Speedometer(85MM)
  • ELING ECH Digital GPS Speedometer(85MM)
  • ELING ECH Digital GPS Speedometer(85MM)
ELING ECH Digital GPS Speedometer(85MM) ELING ECH Digital GPS Speedometer(85MM) ELING ECH Digital GPS Speedometer(85MM)

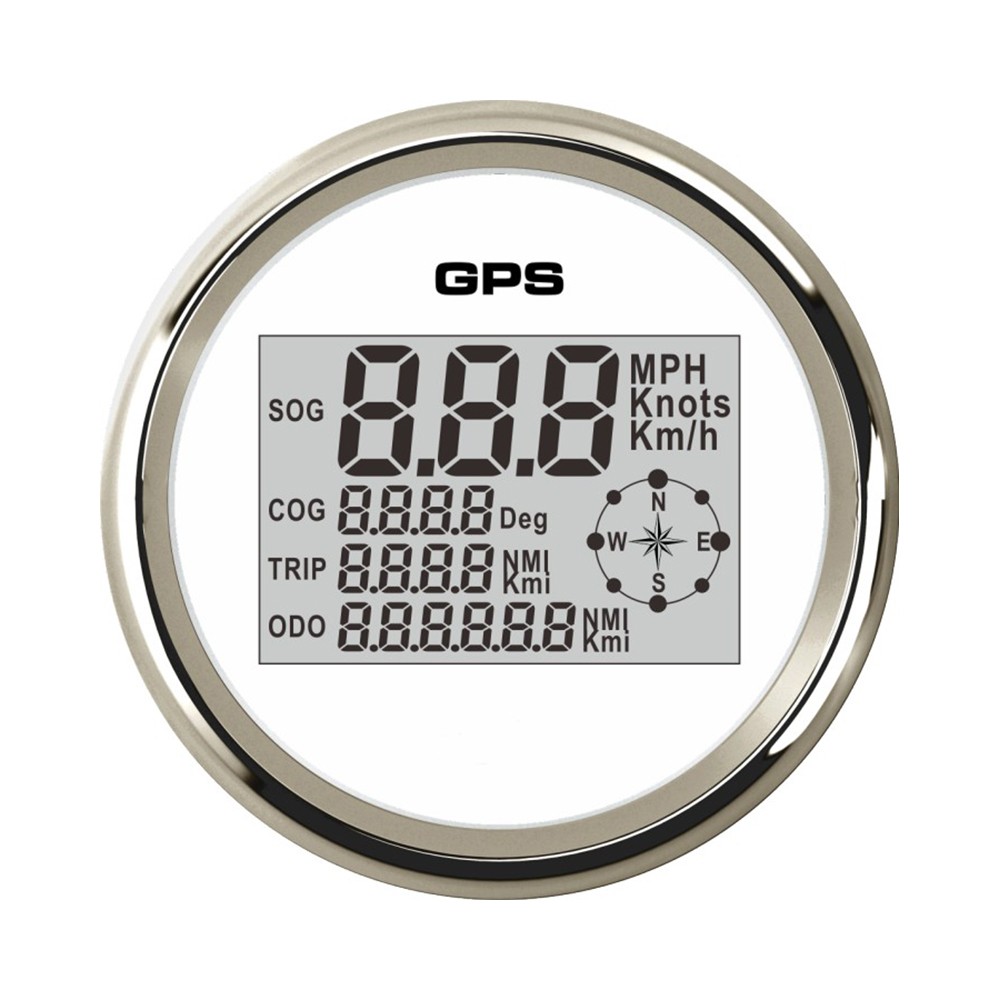

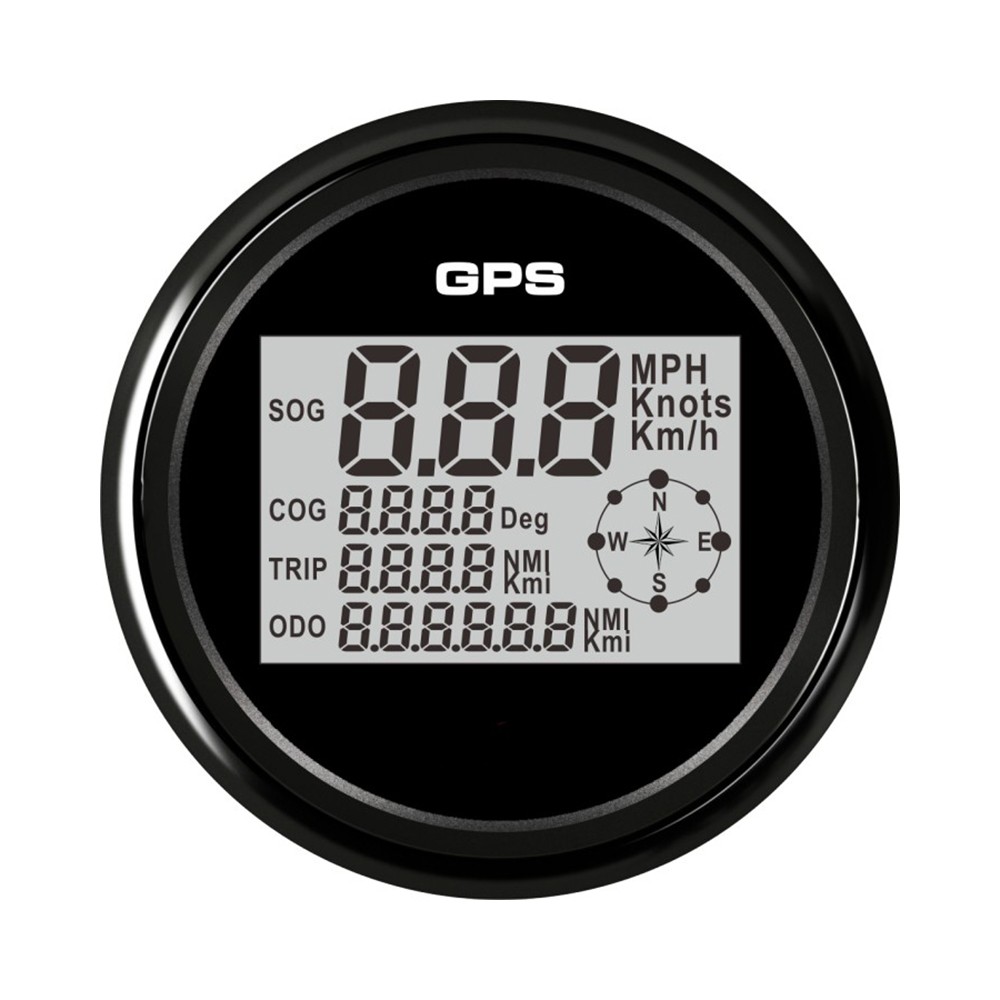

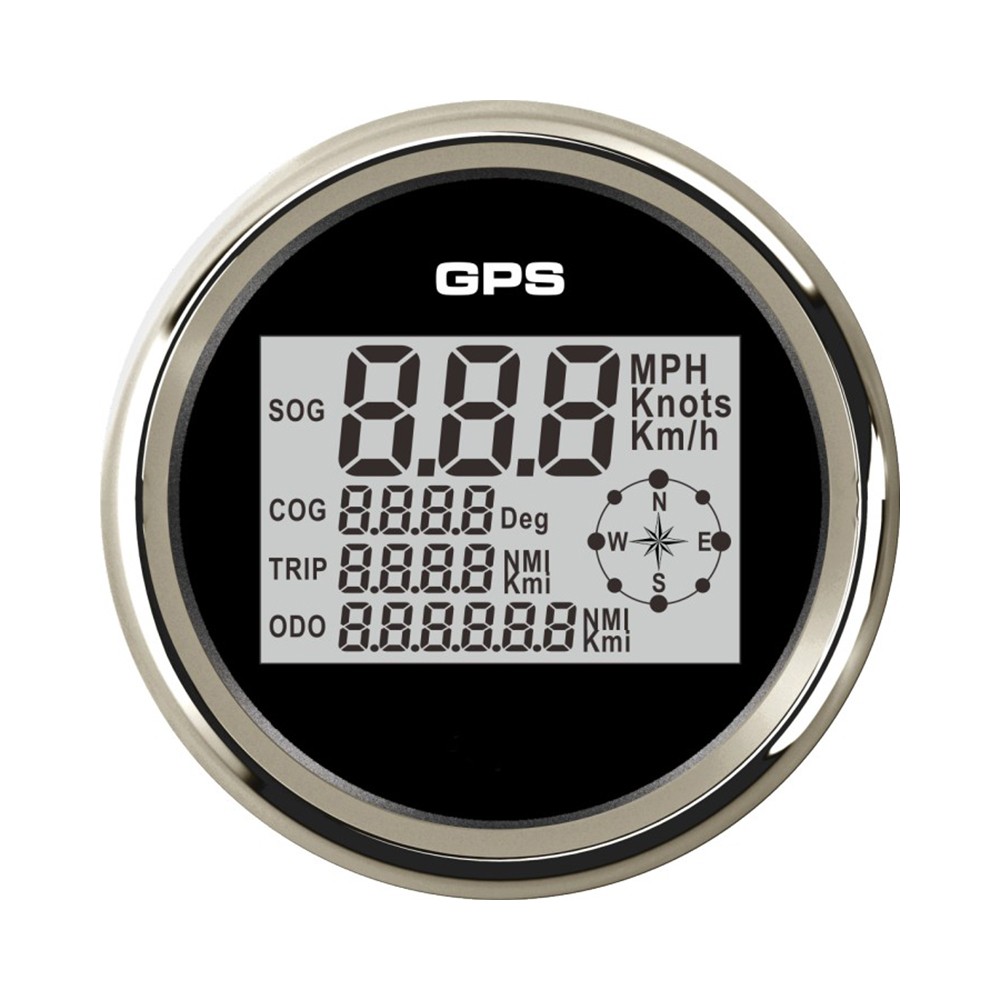

ELING ECH Digital GPS Speedometer(85MM)

  • Product Item:ELING ECH Digital Speedometer 85mm
  • Installation Dimension:85mm(3-3/8'')
  • Working Voltage:9-32V
  • Speed Range: 0-999(MPH, Knots, KM/H adjustable),
  • 8 Color Backlight: Red, Green, Blue, White , Yellow, Grass, Orange, Purple, Automatic
  • gps speedometer  , digital speedometer  , speedometer
    Inquiry Send Email PDF

    Description

    Product Features:

    -8 Color Backlight : Red, Green, Blue, White , Yellow, Grass, Orange, Purple, Automatic,

    it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button.

    -Suitable for all vehicles, boats and off-road vehicles.

    -The signal comes directly from the satellite signal receiver(GPS Speed Sensor).

    -The gauge has the advantages of high precision, quick location confirmation and short start up time.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).

    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: 0-999(MPH, Knots, KM/H adjustable)

    -Tripmeter:0-999.9 (miles, NM, km adjustable)

    -Odometer:0-999999 (miles, NM, km adjustable)

    -COG(Course Over Ground):0-359

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: 8 color backlight

    Functions:

    -SOG---current speed;

    -COG---moving direction;

    -TRIP---mileage for one trip(will become zero after turning off the power);

    -ODO---cumulative total mileage(cannot be reset)

    -Operation mode: LCD display, stepper motor

    Package Includes:

    1x GPS speedometer

    1x GPS Speed Sensor

    1x Multi-plug socket

    1x Installation Instruction
