  5. ELING 85mm Digital GPS Speedometer Multi
  • ELING 85mm Digital GPS Speedometer Multifunction
  • ELING 85mm Digital GPS Speedometer Multifunction
  • ELING 85mm Digital GPS Speedometer Multifunction
  • ELING 85mm Digital GPS Speedometer Multifunction
ELING 85mm Digital GPS Speedometer Multifunction ELING 85mm Digital GPS Speedometer Multifunction ELING 85mm Digital GPS Speedometer Multifunction ELING 85mm Digital GPS Speedometer Multifunction

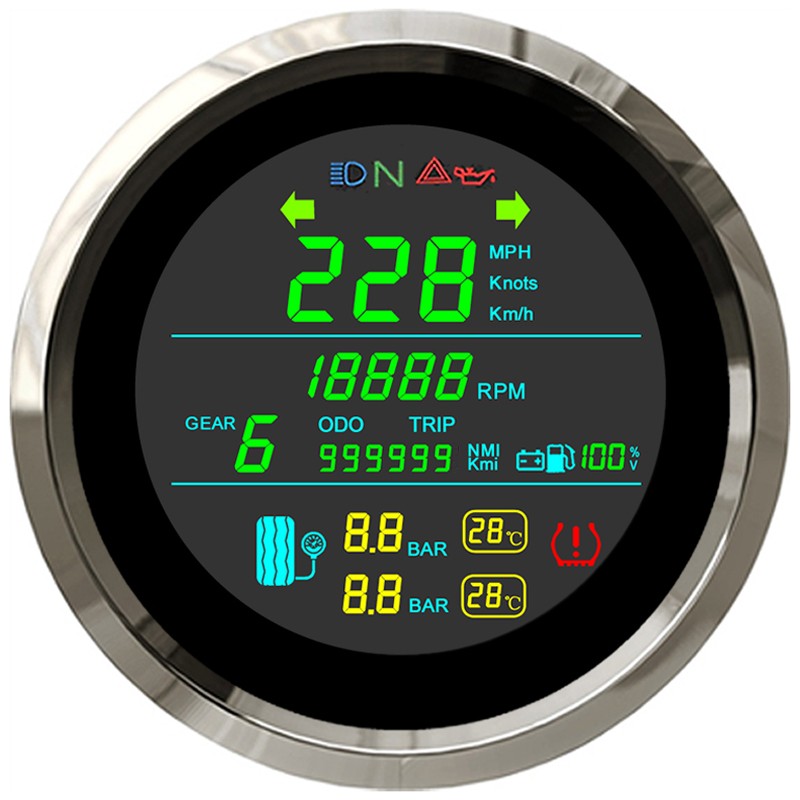

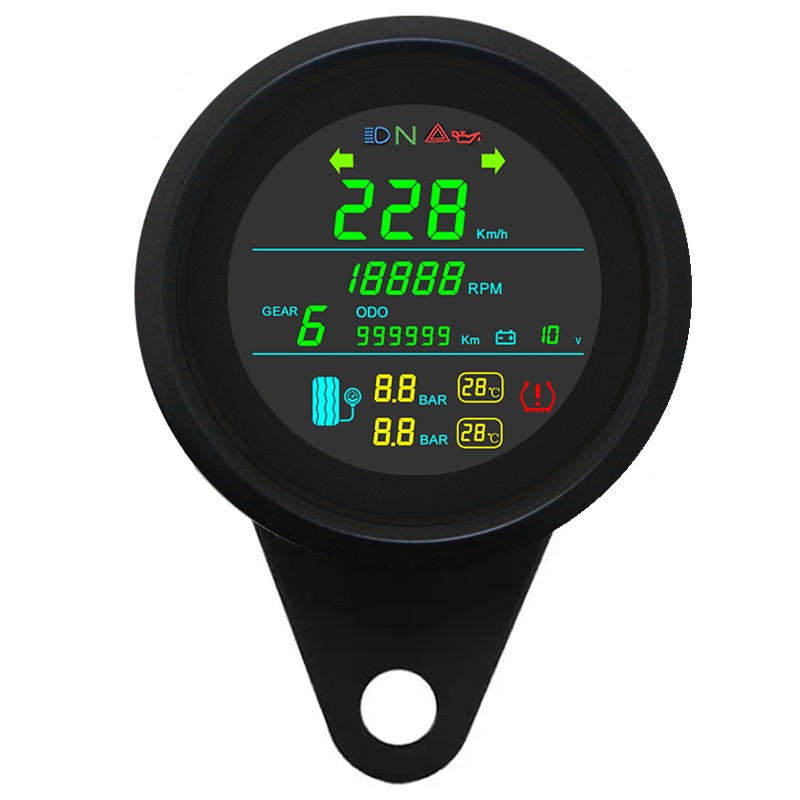

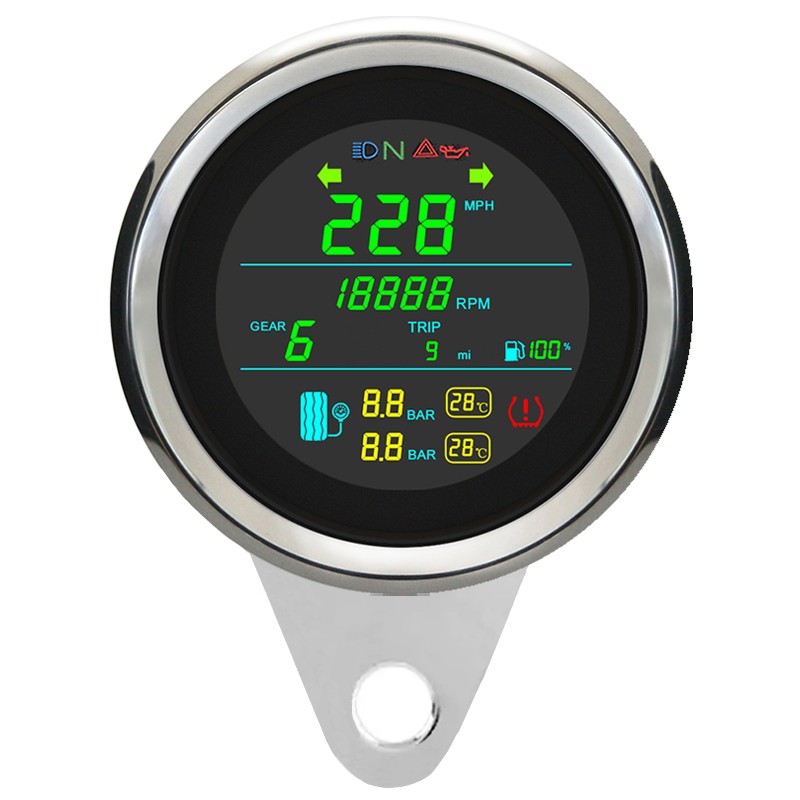

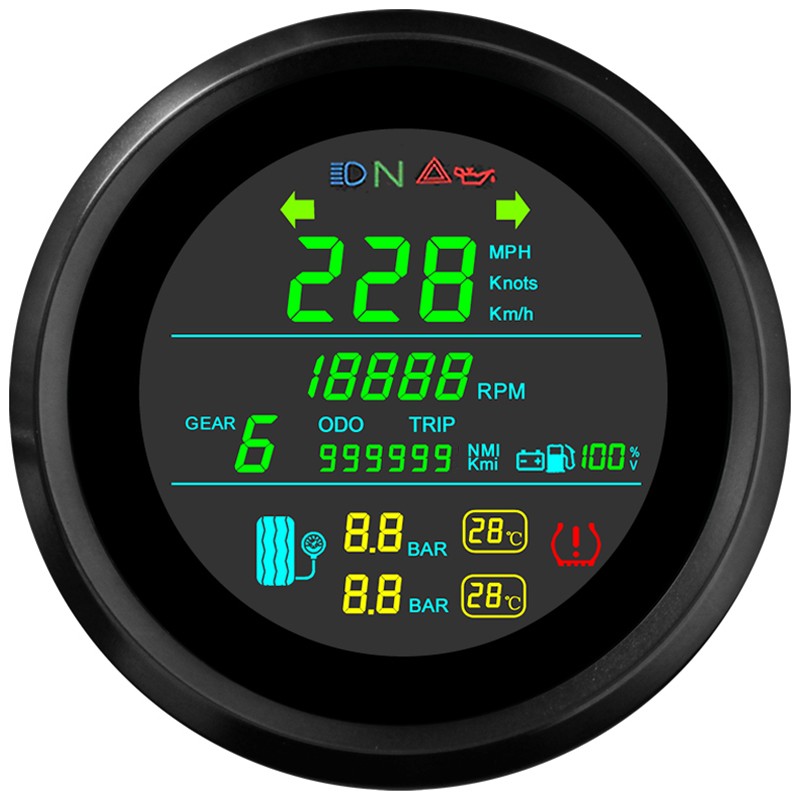

ELING 85mm Digital GPS Speedometer Multifunction

  • Product Item:Digital GPS Speedometer Multifunction
  • Installation Diameter: 85mm (3 3/8”)
  • Speed Range: 0~299 (MPH, Knots, Km/h)
  • Working Voltage:12V/24V
  • IP67 Waterproof
  • Digital GPS Speedometer  , 85mm GPS Speedometer  , Multifunction Gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Electronic Speedometer with Unique High Definition and Contrast Ratio LCD


    -No Mechanic Sensor, get speed signal from GPS, No GPS Stationary Drift


    -GPS Blind Area Odometer Compensation


    -Reverse polarity protection and anti-fogging performance


    -Application: Motorbike or 2-wheel vehicles


    Technical Data:


    -Installation Diameter: 85mm (3 3/8”)


    -Speed Range: 0~299 (MPH, Knots, Km/h)


    -Mileage Range: 0-999999 (Mi,NMI,KM )


    -Trip Odometer Range: 0~999.9 (Mi,NMI,KM )


    -Total Mileage Adjustable, Trip Odometer Reset


    -Gear Number show: N, 1 ~ 6


    -Tachometer Ratio Programmable (support ignition coil connection directly)


    -Two Tyer Pressure & Temperature Indicator with alarm


    -Fuel Gauge/ Voltmeter Switch Show


    -Working Voltage:12V/24V


    -Working temperatures: - 40 to 85°C


    -Indicator: High Beam, Neutral, Alarm, Oil Pressure Alarm, Left Turn, Right Turn


    -OverSpeed Buzzer Alarm (Value Adjustable)


    -Bezel: Black/Silver 316L Stainless Steel (Anti-Corrosion)


    -Reverse polarity protection and anti-fogging performance


    -IP67 Waterproof


    -Installation: Thread or V-Type Universal Stainless-Steel Bracket


    Package includes:


    1x 85mm Multi-functional Gauge


    1x GPS Antenna


    1x Tyer Pressure Adapter


    1x Multi-plug socket


    1x External button


    1x Installation Instruction
