  5. ELING 4 Gang Rocker Switch Panel
  • ELING 4 Gang Rocker Switch Panel

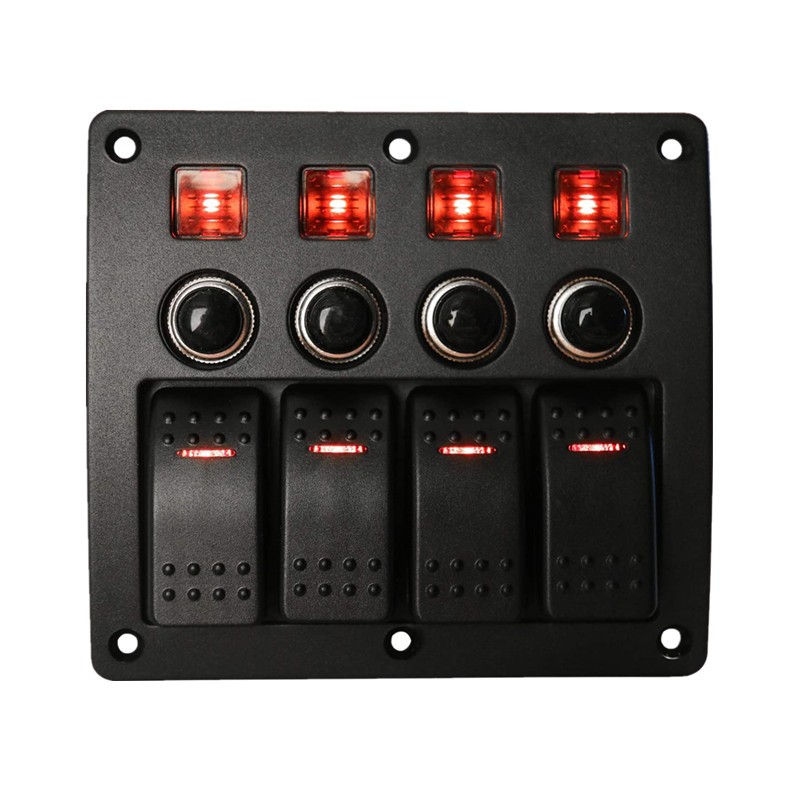

ELING 4 Gang Rocker Switch Panel

  • Product Item:Switch Panel
  • 4 Gang Switch Panel
  • Rocker switch
  • Red Blue Green
  • Togger switch
  • 4 Gang Switch Panel  , Rocker switch  , Red Blue Green
    Inquiry Send Email

    Description

    Specification:

    -Rating: DC 12V 20A, 24V 10A

    -Loop Circuit: ON-OFF

    -Breaker: 4 (5A x 2 ; 10A x 1 ; 15A x 1)

    -Light Color: Red/Green/Blue

    -Dielectric Strength: AC 1500V 1minute

    -Electrical Life: 10000 make and break cycles at full load

    -Operating Temperature:-25℃ to 80℃

    -IP rating: IP67

    -Approved: CE

    -Material: ABS Plastic

    -Size(L*W): Approx. 130*120mm/5.12*4.72 Inch

    Product Material:

      ABS, nylon, aluminum plate resistant to high and low temperature, flame retardant and environmentally friendly materials

    Product Use:

      Installation Scope: applicable to ships, yachts , RVs, buses and other high-end large-scale transportation tools installation and use

    Wiring instruction:

    Installation:pre-wired

    Can be vertical or horizontal mounted

    Red wire: connect the cathode of the storage battery.

    Black wire: connect the anode of the storage battery.

    Blue wire: connect the cathode of the storage battery.

    Yellow wire: connect the anode of the storage battery.

    Six sheet coppers: connect the load generator.

    Packing included:

    1 x Switch Panel
    1 x Label Sticker
    6 × Screw
