  • ELIING GPS HUD Speedometer A3
  • ELIING GPS HUD Speedometer A3
  • ELIING GPS HUD Speedometer A3
  • ELIING GPS HUD Speedometer A3
ELIING GPS HUD Speedometer A3 ELIING GPS HUD Speedometer A3 ELIING GPS HUD Speedometer A3 ELIING GPS HUD Speedometer A3

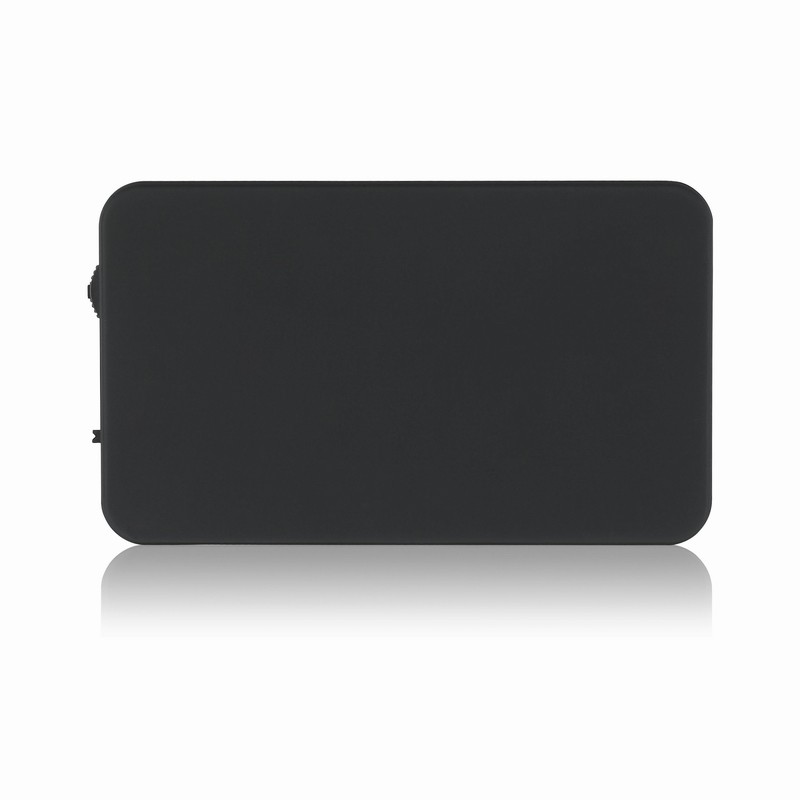

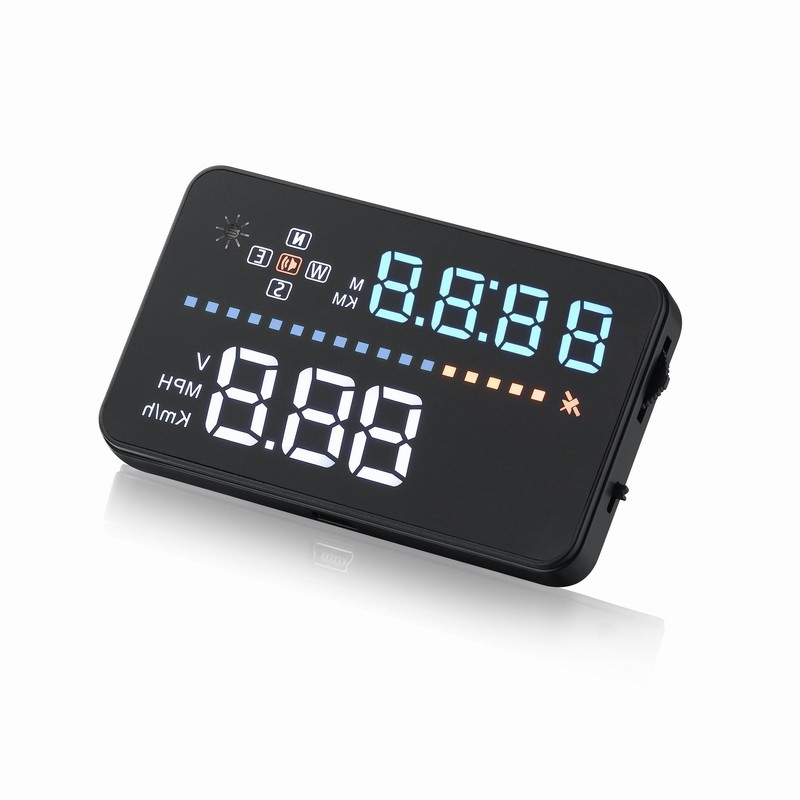

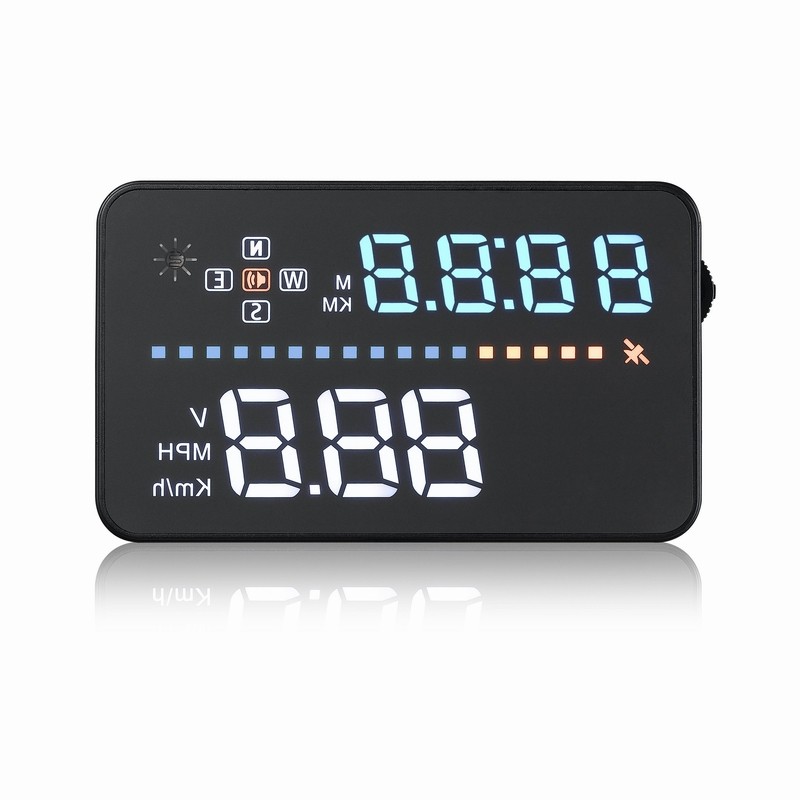

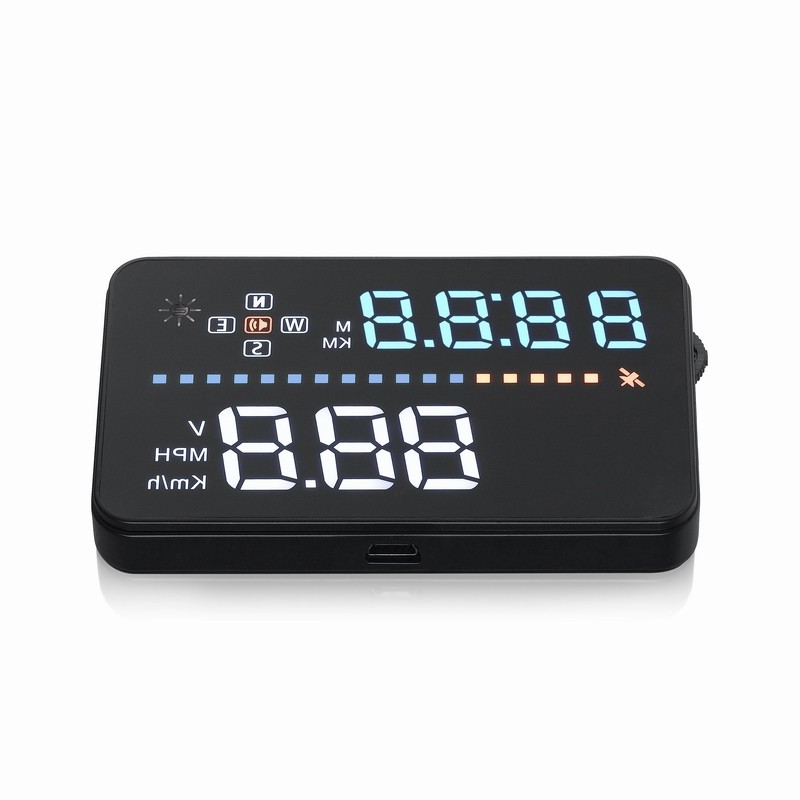

ELIING GPS HUD Speedometer A3

  • Product Item:HUD A3
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email PDF

    Description

    Main Functions&Features:

    -Available for any car, easy to install, plug and play.

    -Screen 3.5 inch HD display.

    -Multi-color design makes the screen more abundant and easier to read.

    -Nano-technology to eliminate double reflections, more clear.

    -Contents: speed, compass, single driving time and distance, local time,satellite number, altitude, speed alarm, free switch between km and miles.

    -Auto power on/off: HUD start and off with vehicle started and shutdown, effective protection of the car battery; retaining the manual switch mode, more easy to control HUD.

    -Automatic and manual brightness adjustment mode, driving without glare.


    Technical Parameters:

    working voltage: DC8-18V

    Working current: 40mA

    sleeping current: 15mA

    Compass precision:  ±1°

    Speed range: 0-400KM

    Real time precision: The same as satellite

    Satellite positioning time:  Cold start: 30s, hot start: 1s

    HUD size: 88*53*13mm

    12V car charger: 1000mA

    HUD weight: 40g
