  5. ELING ECP 52mm Digital 4 in1 Fuel Level
  • ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter
  • ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter
  • ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter
ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter

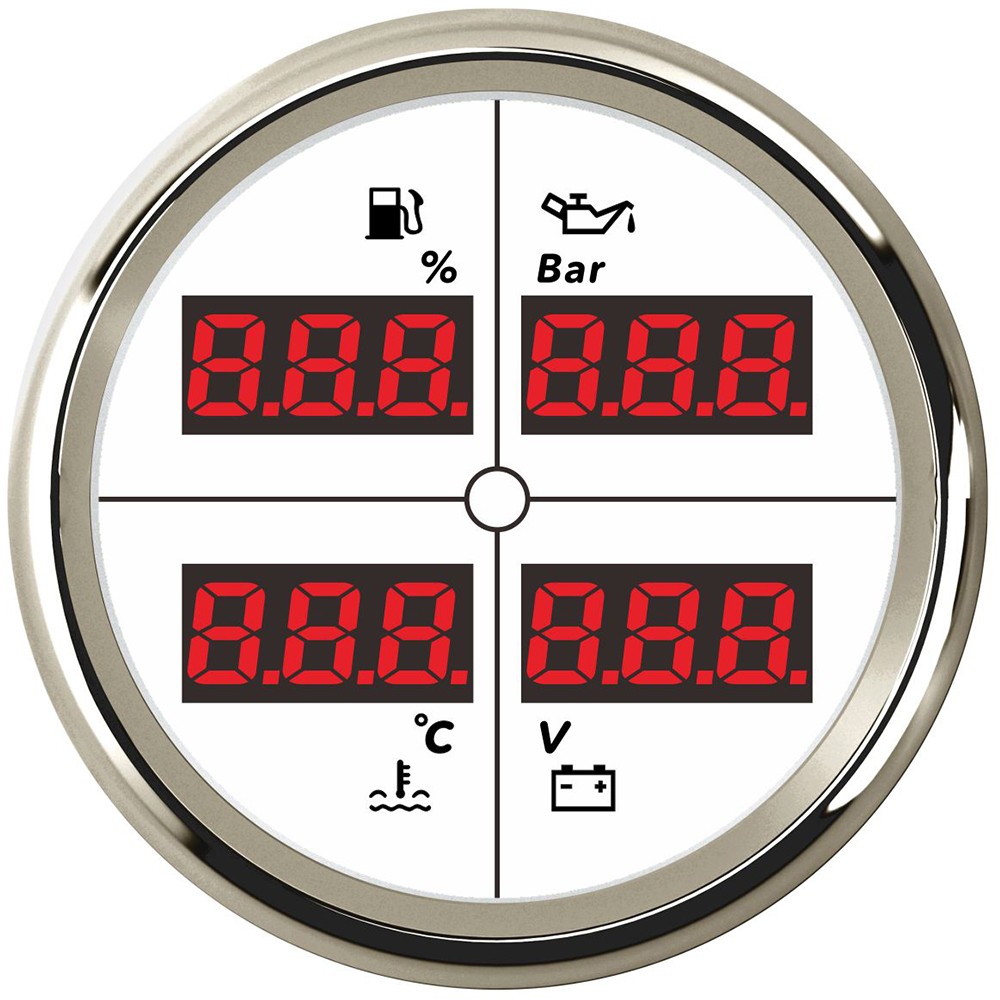

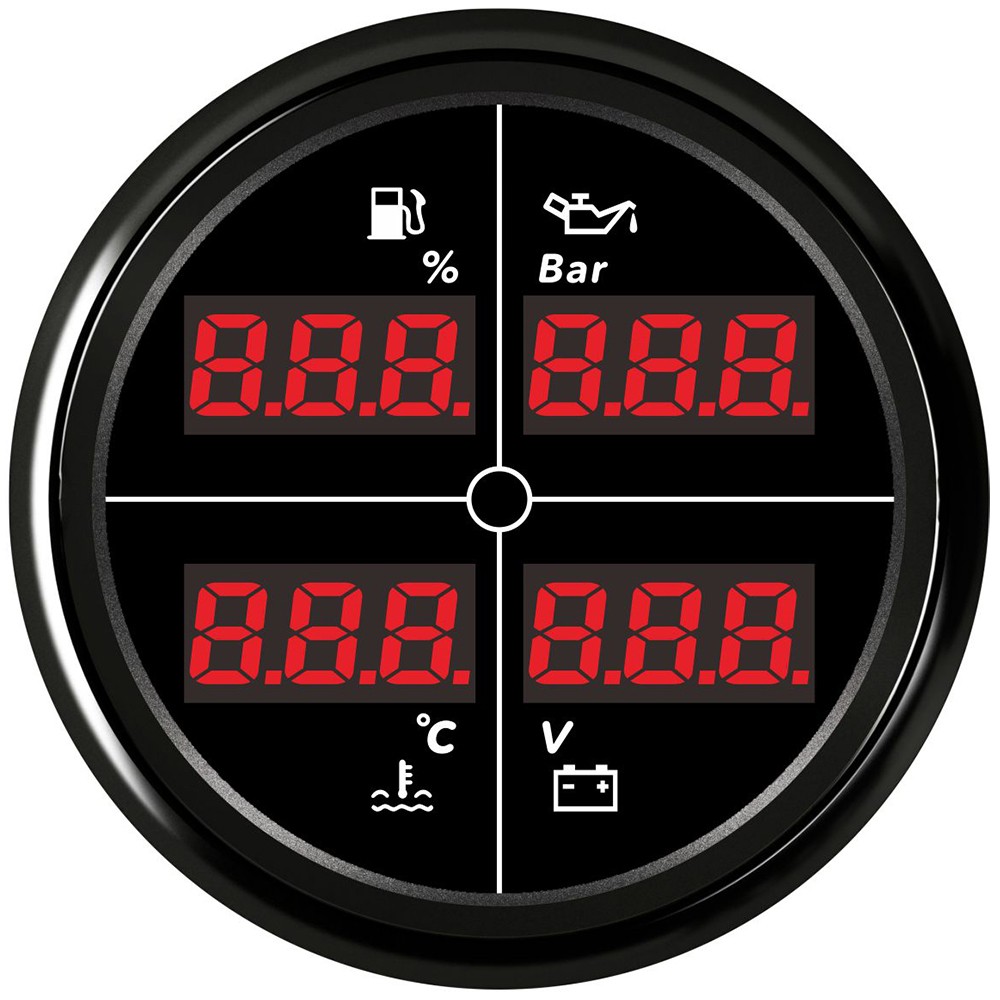

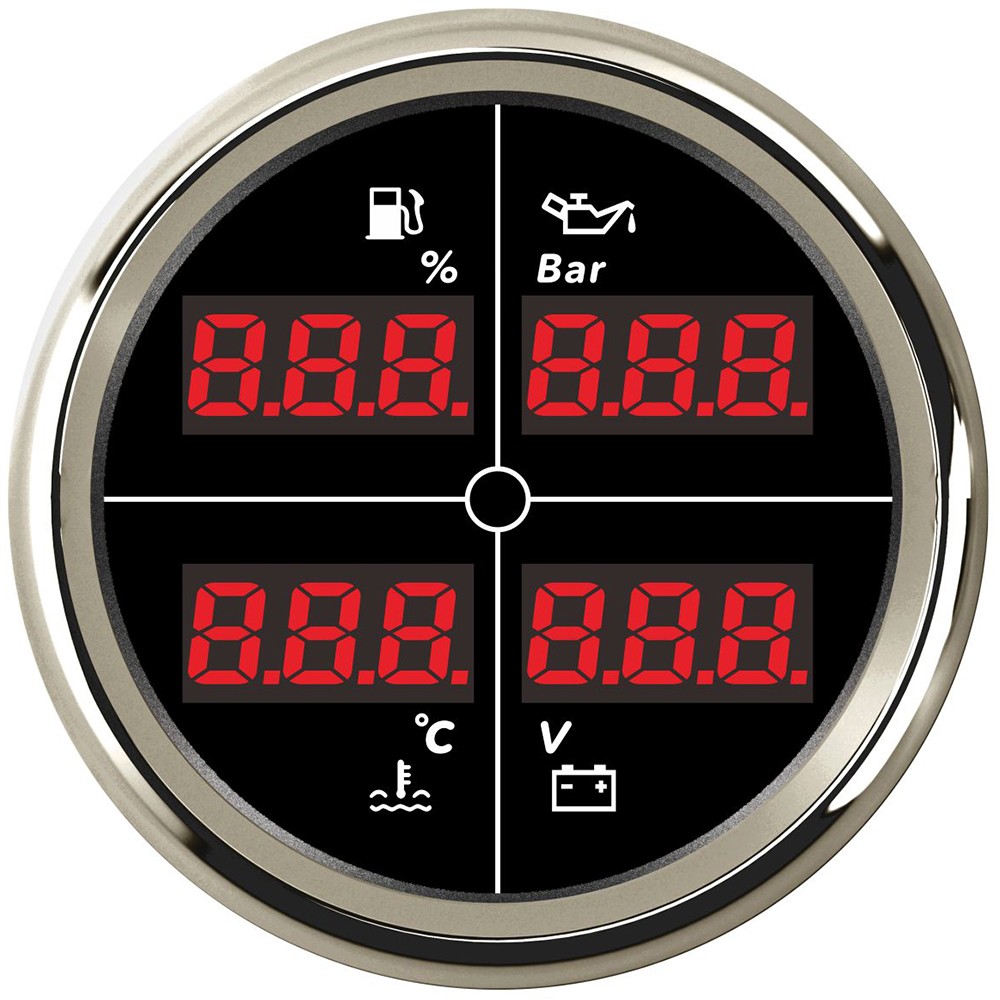

ELING ECP 52mm Digital 4 in1 Fuel Level Oil Pressure Water Temp Voltmeter

  • Product Item:52mm Digital 4 in1 Fuel Level Oil Pressure Water T
  • Fixing dimension: 52mm(2
  • 8 Colors Backlight , red (default) → green → blue → white → yellow → yellow green → orange → Purple .
  • IP67 waterproof and dustproof grade
  • Working Voltage: 9-32V(12V/24V)
  • 52mm Digital Gauge  , Fuel Level Meter  , 4in1 Multifunction Gauge  , Oil Pressure Meter
    Inquiry Send Email PDF

    Description

    Product Feature:


    -Be suitable for all kinds of car,truck,vessels


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Product Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range:


    Fuel Level 0-100%;


    Oil Pressure Adjustable 0-5Bar/0-10Bar(default)/0-25Bar;


    Water Temperature 40-120℃;


    Voltmeter 9-32V DC


    -Signal:


    Fuel Level Signal Adjustable 0-190ohm,0-180ohm,10-180ohm,240-33ohm,240-30ohm;


    Oil Pressure Signal 10-184ohm;


    Water Temperature Signal 287.4-22.4ohm


    -Backlight: 8 Colors Backlight , red (default) → green → blue → white → yellow → yellow green → orange → Purple .


    -Working Voltage: 9-32V(12V/24V)


    -Operation mode: LCD display, stepper motor


    Package include:


    1x 4in1 Gauge


    1x Multi-Plug Socket


    1x Installation Instruction
